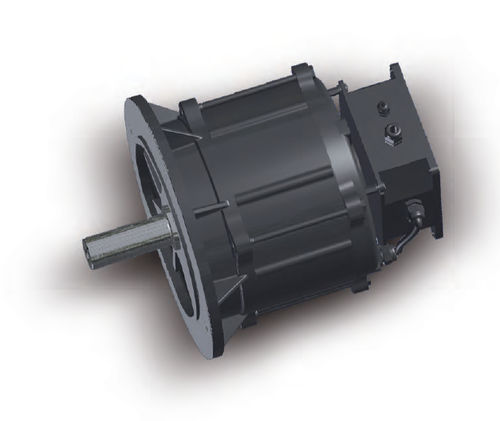

DC motor IFM series
synchronouspermanent magnet

DC motor
DC motor
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Configuration
permanent magnet
Power

1.26 kW
(1.713 hp)

Torque

Max.: 120 Nm
(88.5075 ft.lb)

Min.: 80 Nm
(59.005 ft.lb)

Rotational speed

Max.: 150 rpm
(942.48 rad.min-1)

Min.: 40 rpm
(251.33 rad.min-1)

Description

Big Fan Range for large area ventilation systems Ventilation systems can be designed in many different ways to produce an effective and efficient system. For use in those buildings that have spacious halls or rooms, a new economical way is available to secure an even temperature distribution and correct cooling. A new concept is to use low speed Permanent Magnet Synchronous IE4 Motors running fans with big diameters (up to 7 m) and reduce energy consumption. The innovative low speed Permanent Magnet Synchronous IE4 Motors, specifically designed for fans with big diameters are offered under the name IFM, Integrated Direct Drive Fan Motor. The fan speed can be controlled by a built in drive or stand-alone drive and because the system is completely gearless, efficiency is increased and maintenance significantly reduced. Low speed Big Fans offer the advantage of moving a significant amount of air at a low air speed whilst consuming less energy compared to traditional ventilation systems. In many cases more than 50 % energy saving is expected. It also offer the advantage of very low noise levels and improve the environment, making conditions cooler and more comfortable. It has been proven that air speed > 3 m/s offers insignificant added cooling. There by the most economical solution to distribute the temperature and secure cooling is to install low speed BIG FAN with air speed < 3m/s. From agriculture to the industrial sector, the Big Fan Range is versatile and is ideal for large enclosed areas such as gyms, stables, shopping malls or warehouses.

Catalogs

No catalogs are available for this product.

See all of Lafert‘s catalogs
