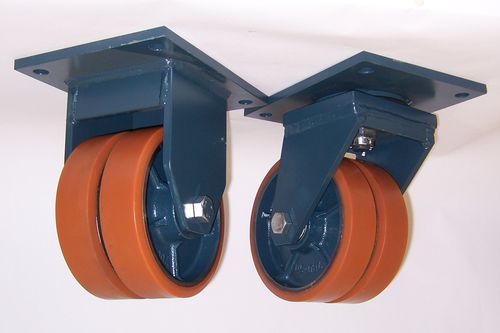

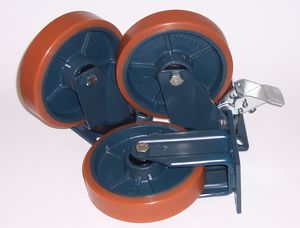

Wheel with solid tire ZETA + G80 series
cast ironsmoothball bearing

Wheel with solid tire - ZETA + G80 series - LAG SPA - cast iron / smooth / ball bearing
Wheel with solid tire - ZETA + G80 series - LAG SPA - cast iron / smooth / ball bearing
Add to favorites
Compare this product

Characteristics

Type
with solid tire
Hub material
cast iron
Hub type
smooth, ball bearing
Hardness
Shore A
Applications
bearing, plate , sheet
Other characteristics
non-marking
Load capacity

Max.: 6,200 kg
(13,669 lb)

Min.: 600 kg
(1,323 lb)

Diameter

Max.: 400 mm
(15.75 in)

Min.: 100 mm
(3.94 in)

Tread width

Max.: 100 mm
(3.94 in)

Min.: 30 mm
(1.18 in)

Description

CAST IRON CORE - CAST POLYURETHANE COATING. Cast polyurethane coating, hardness 95±3 Shore A. Core in cast iron suitable for heavy and extra heavy loads; painted. Excellent smooth and noiseless running; high resistance to abrasion, wear and tear, oils and greases. Temperature range: -30°C / +80°C (-22°F / +176°F). Hub with: shielded precision ball bearings. EXTRA HEAVY DUTY TWIN CASTORS Finish: painted. Top plate in heavy gauge pressed steel sheet. Kingpin. Dust protection ring. Axial ball bearing. Fabricated swivel fork in heavy gauge steel-sheet. Tapered roller bearing. Dust cover disc in pressed steel-sheet. Locked nut. Grease nipple.
