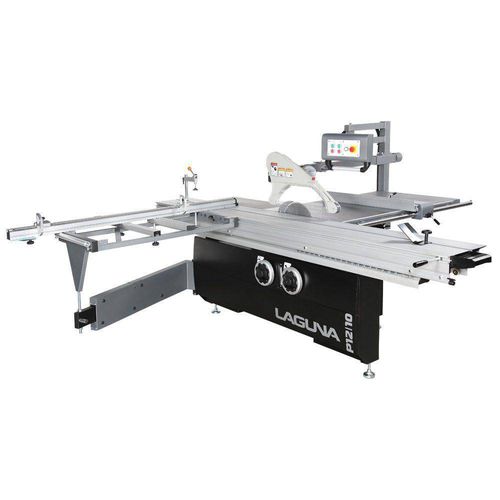

The 126″ sliding table is constructed of anodized aluminum. The dumbbell design is widely recognized as the superior choice for high-end sliders today. Ultra-smooth movement allows you to move the table effortlessly.The European-style 51″ rip fence consists of a heavy-duty casting riding on a micro-polished solid steel bar. On the backside of the casting is a small adjustable wheel to make sideways movement a breeze. The rip fence is outfitted with a micro adjustment for fine-tuning; simply lock it in place and adjust fence incrementally. The overhead guard comes standard with quick-change 90° and 45° guards; you can switch from one to the other in a matter of seconds. A nice detail is the swing-away function that allows you to quickly move the guard out of the way. Dust collection hookup is out of the way at the end of gantry (5″).
•Motor: 7.5HP 3 Phase Main
•Motor: 3/4 HP Scoring
•Volt: 220, 1 phase, 60 Hz.
•Blade Capacity: 12″, 14″/300mm, 355mm
•Max. Blade: 16″/400mm (minimum height when lowered: 1″/25mm)
•Max Scoring Blade: 4 3/4″/120mm
•Scoring Adjustment: T-Handle through Cast Top
