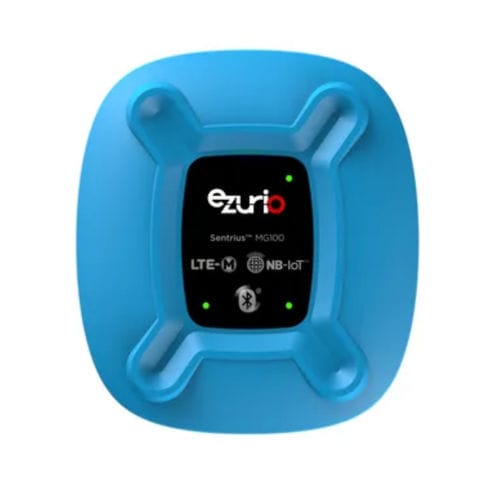

NB-IoT gateway Sentrius™ MG100

wirelesscellularBluetooth

Powered by Ezurio's (formerly Laird Connectivity) Pinnacle™ 100 Modem, the Sentrius MG100 Gateway captures data from Bluetooth 5 long range sensors and sends it to the cloud via global low-power LTE-M/NB-IoT. Multi-Protocol Wireless – Cellular and Bluetooth powered by Sierra Wireless HL7800 (Altair ALT1250 chipset) and Nordic nRF52840 (BT 5, Coded PHY Long Range, 1MPHY and 2MPHY). NFC support with integrated antenna. Onboard Cortex-M4F Microcontroller – 32-bit @ 64 MHz, 256 KB of RAM, 1 MB internal flash, 8 MB QSPI Compact Enclosure with On-Device Controls – 110.28 mm x 99.16 mm x 35.32 mm form factor with multi-purpose button and three configurable LEDs. Option for Canvas Software Suite VS Code IDE to develop Python applications. Sample scripts for BLE, MQTT, HTTP, and LWM2M. Mobile app (Android and iOS) to update device firmware, as well as engineering services support. Flexible Power Options – AC power or External USB power. Optional rechargeable backup battery for outage coverage. Antenna Choice - Low-cost internal LTE and Bluetooth antennas or external SMA variant. Supports LTE bands 1, 2, 3, 4, 5, 8, 12, 13, 20, 28. Device programming - Ezurio USB-SWD kit (453-00062-K1) and 6-pin Dupont male to female header cable. Certifications – FCC, ISED, CE, UKCA, Bluetooth SIG plus PTCRB, GCF and End Product certified – AT&T and Verizon Customizable – Custom branding, packaging, application development all available. Additional Features NFC Accelerometer Antenna Options Unique integrated antenna variant plus external variant with SMA connectors Battery (optional) 2600 mAh standard capacity Lithium Ion 18650 Bluetooth Version 5 Cellular Carrier AT&T Verizon
