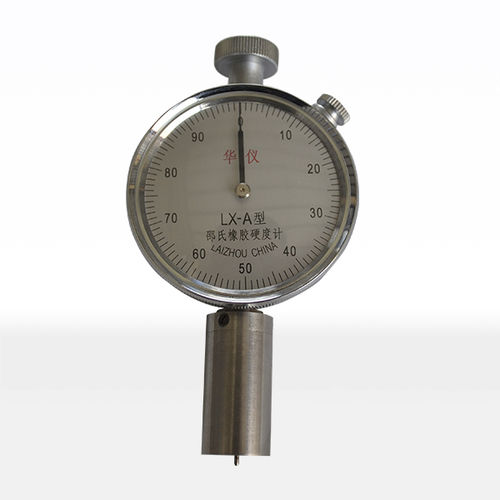

Shore A hardness tester

handheldISO 7619

Shore A hardness tester can be equipped with test stand Shore hardness tester (rubber hardness tester) is widely used in hardness measurement of rubber and plastic. With the features of simple structure, convenient use, small body, light weight, and intuitive reading, it can carry hand-held measurement, or it can be set on the same type of fixed load holder for matching production. Product standard andapplications: 1. The products are produced according to the ISO 868 and ISO 7619 international standards and meet the standards of GB/T531, JB6148 and JJG304 2. It is widely used in the hardness test of low and medium hardness plastics, all kinds of rubber, multi-component grease, leather, wax, etc. Technical parameters: Measuring range 0-100HD Measurement error Within 10-90 degrees,error<±1 degrees Resolution 1 degrees Needle stroke 2.5mm Needle end pressure 0.55N-8.05N Needle head size Φ 0.79mm Product size 115×60×25mm Weight About 160g
