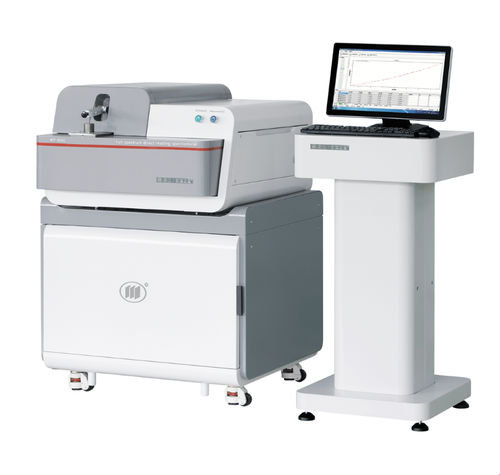

Atomic emission spectrometer WY-9000

optical emissionOESspark optical emission

Product Overview
WY-9000/9500 direct-reading optical emission spectrometer for metal and alloy analysis. Vacuum optical chamber (reduces O2 absorption <200 nm) and constant-temperature control (34°C) enhance stability and detection limits for elements such as C, P and S. Software-configurable channels allow addition or modification of element channels without hardware changes. Integrated digital light source supports multiple excitation modes (spark, arc, arc-like) for major, high-concentration, trace and ultra-trace elements. Windows-based software offers full Chinese-language UI, database functions and network data transfer.

Key Specifications
Optical structure: Full-spectrum Paschen–Runge configuration (vacuum)
Wavelength range: 160–800 nm
Grating focal length: 401 mm
Grating density: 2400 lines/mm
Spectral dispersion (1st order): 1.1 nm/mm
Detector: Multiple high-performance linear-array CCDs
Light source: All-digital spark excitation (100–1000 Hz; pulse 1–100 A)
Excitation port: 12 mm; argon-pulsing, jet-type spark ignition with automatic purging
Ambient conditions: 10°C–30°C; 20%–80% RH
Power: AC 220V / 50Hz
Argon purity: 99.999%
Dimensions (examples): 700×800×450 mm (desktop), 850×870×1175 mm (variant)

Light Source & Excitation
All-digital solid-state spark source with continuously adjustable energy and frequency. High-frequency pulsed discharge (1–100 A) enables analysis across concentration ranges. Argon-pulsing, jet ignition and automatic purge minimize contamination and improve repeatability.

Product Advantages

• High-resolution design (long focal length grating, Parabolic–Rowland/Paschen–Runge and high vacuum) to minimize spectral interference and improve sensitivity.
• Mechanically ruled gratings allow higher-order spectra and flexible wavelength selection.
• Highly integrated electronics in standardized chassis for low failure rate and simplified maintenance.
• Fast analysis with good repeatability; typical full-channel elemental analysis in ~30 seconds.
• Software database for measurement retrieval, printing and remote data transmission.
• Temperature-controlled optical components and solid-state adsorption trap to prevent oil/gas contamination, ensuring long-term stability.
• Software-configurable element channels — add or modify channels without hardware changes.
• Optimized argon delivery reduces purge time and argon consumption.
• High-performance DSP and ARM processors for ultra-fast data acquisition and real-time monitoring (temperature, vacuum, argon pressure, light source status).
• Open electrode holder and adjustable sample fixture for varied sample shapes and sizes.

Configuration & Accessories (selected)
Spectrometer host — Model: WY-9000 (or WY-9500); Qty: 1
Commercial computer — mainstream configuration; Qty: 1 (suggested brand example: Lenovo)
Laser printer — B/W A4; Qty: 1
Vacuum pump — Model BSV-10; Qty: 1
Cable glands — KF25 (3 sets), KF16 (2 sets)
Vacuum connecting pipe — φ19–25; Vacuum clamping valve GYC-JQ25; Filter valve; Argon regulator YQY-12; Quick connector M10×1 φ6; Argon pipeline (approx. 2 m); Ethernet cable; power cords

User Documentation

• Software USB drive — Qty: 1
• User manual — Qty: 1
• Certificate of conformity — Qty: 1
• Warranty certificate — Qty: 1
• Installation acceptance report — Qty: 1

Technical Specifications

• Model: WY-9000 / WY-9500
• Wavelength range: 160–800 nm
• Grating focal length: 401 mm; grating density: 2400 lines/mm; dispersion: 1.1 nm/mm
• Detector: Multiple high-performance linear-array CCDs
• Light source: All-digital spark excitation, 100–1000 Hz, pulse 1–100 A
• Optical chamber temperature control: 34°C
• Argon requirement: 99.999% purity
• Operating environment: 10°C–30°C, 20%–80% RH
• Power supply: AC 220V / 50Hz
• Typical analysis speed: full-channel elemental composition in ~30 seconds
