Equipment trailer 950E

construction3-axletowed

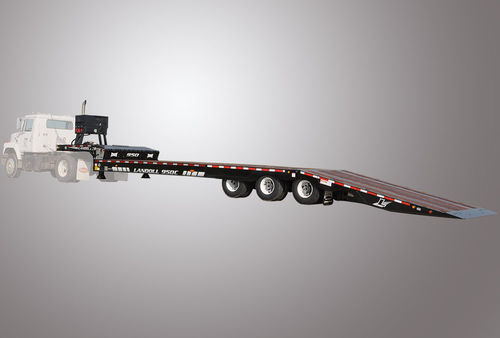

950E Traveling Tail The 950E Traveling Tail is part of the 900 E Series. The 950E is a 50-Ton capacity and has three 25,000# axles. The 950E offers tail lengths of 12′ or 15′ tails and 45′, 48′ and 51′ overall lengths. The 950E offers the same rugged four beam construction and other outstanding features of the 900 E Series – standard powder coat paint, stable rigid dock arm, a tail-lifting capacity of 24,000 lbs. and a centralized grease system. Landoll is the only trailer manufacturer to offer powder coat paint on large trailer frames. Why Own a 900 E Series Quick, simple, safe operation and a longer wheelbase that increases payload. A 15′ tail reduces the load angle to a low 11°. Frames are steel shot blasted in preparation for the TGIC polyester powder coat paint finish standard on 900 Series trailer. The tail can raise and lift 24,000 lbs up to 57″ dock height. The 900 E Series is backed by a 5-year structural warranty. Frame and Features • *Capacity: 50 Ton (100,000 lbs.) • Deck Rating: 70,000 lbs. in 10′ • Estimated Base Weight: 19,890 lbs. (51′) +/-3% • Main Frame: Fabricated 100,000 PSI Yield 4-Beam Design • Crossmembers: 4″ Junior I-Beam and 3″ Junior I-Beam on 8″ Centers • Slope Drop: 90° • Parking Stands: Jost Two Speed Landing Gear • Pin Setting: 18″ • Swing Clearance: 84″ • Hitch: Fifth-Wheel Kingpin • Deck Width 102″ • Loaded Deck Height: 38″ • Loaded Ground Clearance: 20″ • Decking: 1-3/8″ Apitong Hardwood (Lower Deck) • Tool Box: Twin Upper Deck Mounted Top-Opening with Non-Weight Bearing Lid Illuminated
