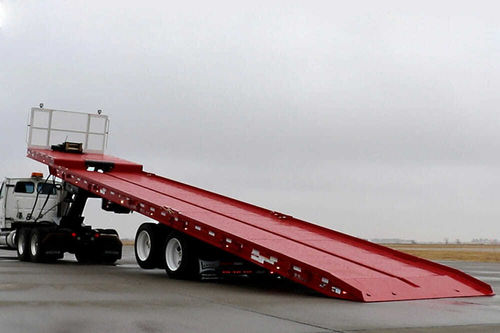

Platform trailer 330D-1

container2-axlefor industrial materials

Haul Empty Containers The Model 330D container trailer is designed with a solid, flat platform made with two main beams, and a rugged outer channel with a 3/8” skid plate and side rail built in. The full-width solid approach plate has four keyhole tie-downs. The 330D is also available in an optional single drop frame to haul high cube containers. Versatility with Full Tilt Design A tilt design provides load angle versatility that allows container placement with hydraulic control at all times. Adjust the load angle from 9° to 17° to accommodate different locations. Place containers right on target (next to buildings, alleyways, behind or even inside retail warehouses). Load and transport storage containers You may also choose the optional Chain Drive Load System which handles loading multiple boxes on the same load. The standard equipment list goes on with full 25,000 lb. air brake axle, spring brakes, and 255/70R 22.5 tires. Built with a rugged frame and heavy duty components, you have a trailer that will perform for many years. Frame and Features • *Capacity: 8 Ton (16,000 lbs.) • Deck Rating: 10,000 lbs. in 10′ • Estimated Base Weight: 15,200 lbs. (48′) +/-3% • Main Frame: Fabricated 80,000 PSI Yield Beams • Crossmembers: 3-1/2″ x 3-1/2″ Tube on 18″ Centers • Pin Setting: 30″ (18″ at 90° Drop) • Swing Clearance: 72″ • Deck Width: 102″ • Loaded Deck Height: 42″ • Decking: 1/8″ Steel Tread Plate, 5″ Cable Trough – Full Length, Formed Angle Skid Plate / Side 5/16″ x 12″ x 3-1/2″ • Load Angle: 12°
