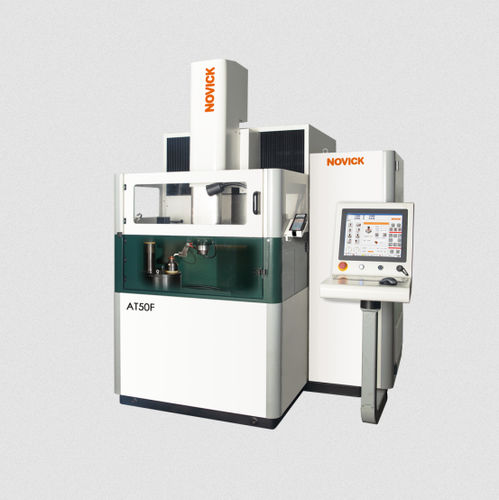

SEDM electrical discharge machine AT50F

die sinkingsinkertool sharpening

Overview
The high-precision D-axis is configured to ensure the dressing accuracy of the electrode and the machining accuracy of the tool. The automatic measurement and analysis system of cutter and tooth indexing is equipped to improve the measurement accuracy and efficiency. With the unique sealing technology, the processing area is completely immersed in the working fluid, it is safer and has better environmental protection effect than spray processing method.

Category
Tool processing machine series

Keywords

• Knife sharpener
• Diamond grinding wheel sharpener
• Spark machine

Product table
Project | Unit | AT50F
Overall dimension | mm | 1750x1610x2400
Machine weight | kg | 2300
X/Y/Z axis resolution | mm | 0.001
C- axis positioning accuracy | ° | 0.006
D shaft speed | rpm | 1350/4800
Maximum electrode size | mm | φ100x20
Maximum electrode weight | kg | 70
Maximum cutter diameter | mm | 400
Maximum cutter head weight | kg | 15
Power supply standard | | 3x380V 50/60Hz 10KVA
Input power | KVA | 10
Maximum machining current | A | 50
optimum surface roughness | μm | Ra0.1
Maximum processing speed | mm3/min | 380mm3/min+10%(50A)
Interpolation type | | Line/Arc

Characteristics / technical specifications

• Model: AT50F
• Overall dimension: 1750x1610x2400 mm
• Machine weight: 2300 kg
• X/Y/Z axis resolution: 0.001 mm
• C-axis positioning accuracy: 0.006 °
• D shaft speed: 1350/4800 rpm
• Maximum electrode size: φ100x20 mm
• Maximum electrode weight: 70 kg
• Maximum cutter diameter: 400 mm
• Maximum cutter head weight: 15 kg
• Power supply standard: 3x380V 50/60Hz 10KVA
• Input power: 10 KVA
• Maximum machining current: 50 A
• Optimum surface roughness: Ra0.1 μm
• Maximum processing speed: 380 mm3/min +10% (50A)
• Interpolation type: Line/Arc
