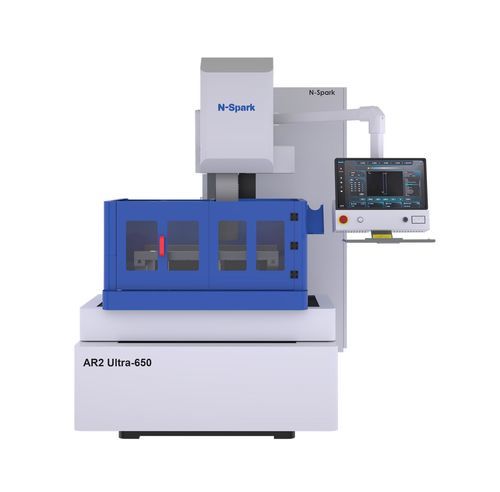

Wire electrical discharge machine AR2 Ultra-650

wire EDMprecisionhigh-productivity

Product overview
The second-generation reciprocating wire-walking EDM machine tool, AR2 Ultra series, features a comprehensive design upgrade with major improvements to the wire feeding system. It introduces the industry's first fully automatic threading technology for reciprocating wire-walking equipment, eliminating manual threading and narrowing the performance gap with brass- and molybdenum-wire cutting equipment. This automatic threading system enhances productivity, repeatability and operator convenience for precision mold and component machining.

Category
Precision CNC middle wire N-spark series

Technical table
Model | Unit | AR2 Ultra-650
Overall Dimensions | mm | 2110×2210×2170
Total Weight | kg | 3000
Table Surface Size | mm | 910×664
XY Axis Stroke | mm | 650×500
UV Axis Stroke | mm | 70×70
Z Axis Stroke | mm | 250
Max. Erosion taper | | ±3º/80mm
Max. Erosion thickness | mm | 340
Working fluid tank size | mm | 1140×810
Max. workpiece weight | kg | 700
Max. workpiece size | mm | 1110×780×280
Standard power | | 3×380V 50Hz 1.5kVA
Function keys | | Display of axes X/Y/U/V; axis selection and movement; moving velocity and single; start pump; wire-driving; start-stop-pause; return to origin; edge-finding; center-finding; set to origin; back half a point
Max. machining current | A | 15
Max. machining velocity | mm²/min | 300
Best roughness | μm | Ra<0.8
Controlling axes | | 5 axes
Software control | | NOVICK CAM 2025

Technical specifications

• Model: AR2 Ultra-650
• Overall dimensions (mm): 2110×2210×2170
• Total weight (kg): 3000
• Table surface size (mm): 910×664
• XY axis stroke (mm): 650×500
• UV axis stroke (mm): 70×70
• Z axis stroke (mm): 250
• Max. erosion taper: ±3º/80mm
• Max. erosion thickness (mm): 340
• Working fluid tank size (mm): 1140×810
• Max. workpiece weight (kg): 700
• Max. workpiece size (mm): 1110×780×280
• Standard power: 3×380V 50Hz 1.5kVA
• Max. machining current (A): 15
• Max. machining velocity (mm²/min): 300
• Best roughness (μm): Ra<0.8
• Controlling axes: 5 axes
• Software control: NOVICK CAM 2025
• Function keys: Display of axes X/Y/U/V; axis selection and movement; moving velocity and single; start pump; wire-driving; start-stop-pause; return to origin; edge-finding; center-finding; set to origin; back half a point
