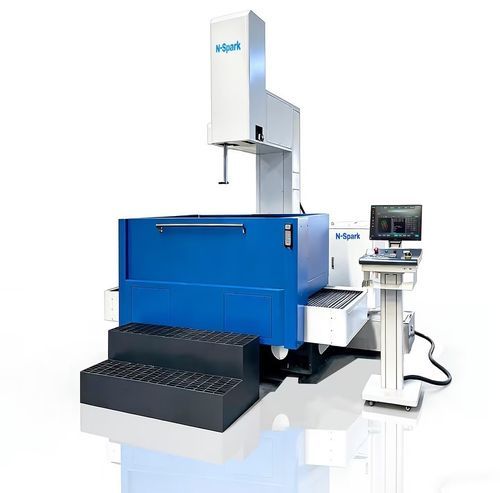

Wire electrical discharge machine AR2 Pro-1600

wire EDMwire-cutfor large parts

Overview
The N-Spark product series preserves NOVICK’s proven quality and advanced intelligence while improving peripheral features and overall performance. Backed by Andekejian’s quality assurance standards, the AR2 Pro-1600 provides reliable operation, comprehensive technical support and practical functions aimed at industrial production environments.

Category

• N-Spark Wire EDM AR2 Pro Series

Product details (table)

• Machine model: AR2 Pro-1600
• Overall dimensions (mm): 3400 × 2900 × 2250
• Machine weight (kg): 4500
• Worktop dimensions (mm): 1600 × 1200
• XY axis travel (mm): 1600 × 1200
• UV coordinate axis travel (mm): 56 × 56
• Z-axis travel (mm): 400
• Maximum cutting taper: ±6°/80 mm (optional ±12°/80 mm)
• Maximum cutting thickness (mm): 500 (optional 800 / 1000)
• Working fluid tank dimensions (mm): 2000 × 1600
• Maximum workpiece weight (kg): 2500
• Maximum workpiece size (mm): 2000 × 1600 × 500
• Standard power supply: AC 3×380 V, 50 Hz, 1.5 kVA
• Maximum machining current: 15 A
• Maximum processing speed: 300 mm²/min
• Optimal surface roughness: Ra < 0.8 μm
• Configuration: Industrial PC / SSD / Color LCD monitor / USB data transfer
• Control axes: Five-axis
• Programming method: Novick CAM 2026

Notes

• Available functions and operation keys: XYUV coordinate display; axis selection and manual movement; movement speed and single-step mode; pump on/off; wire feeding; start/stop/pause; axis homing; wire edge-finding and center-finding; axis zeroing; return to midpoint.

Specifications

• Model: AR2 Pro-1600
• Overall dimensions: 3400 × 2900 × 2250 mm
• Machine weight: 4500 kg
• Worktop dimensions: 1600 × 1200 mm
• XY travel: 1600 × 1200 mm
• UV axis travel: 56 × 56 mm
• Z-axis travel: 400 mm
• Max cutting taper: ±6°/80 mm (optional ±12°/80 mm)
• Max cutting thickness: 500 mm (options 800 / 1000 mm)
• Working fluid tank: 2000 × 1600 mm
• Max workpiece weight: 2500 kg
• Max workpiece size: 2000 × 1600 × 500 mm
• Power supply: AC 3×380 V, 50 Hz, 1.5 kVA
• Max machining current: 15 A
• Max processing speed: 300 mm²/min
• Surface finish: Ra < 0.8 μm
• Configuration: Industrial PC, SSD, color LCD, USB data transfer
• Control axes: Five-axis
• Programming: Novick CAM 2026
