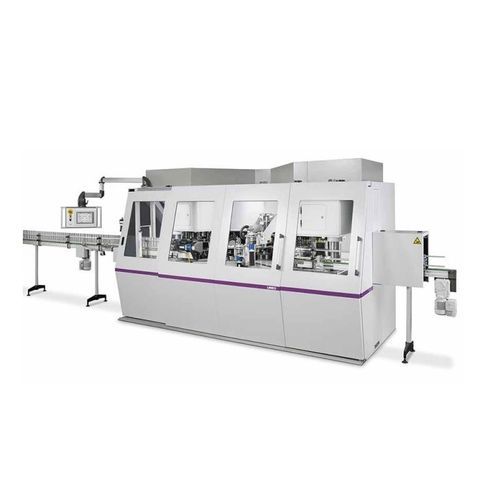

Tin can forming machine CF 581

metalmodular

The leading supplier of advanced can making machinery and complete lines proudly presents the evolution in aerosol can making. With a working range perfectly covering all sizes of 3-piece aerosol cans and the production speed of up to 500 cpm this system forms another benchmark for the Aerosol can production from super-thin body material down to 0,13 mm, thus allowing material savings up to 30 % compared with conventional machinery in use. Optimized for the production of tin-plate Aerosol Cans Designed to handle body material down to 0,13 mm thickness 20 seconds tool free height change System Modular tools, 120 minutes for diameter change (depending on machine version) Individual spindle speed adjustment for each carousel with rotating tools RMS Recipe Management System In the 5 carousel stations, each equipped with 3, 4 or 6 spindles the following operations are performed individualy Die necking both ends Roller necking to final neck diameter Spin flanging both ends Bottom end seaming Top end seaming
