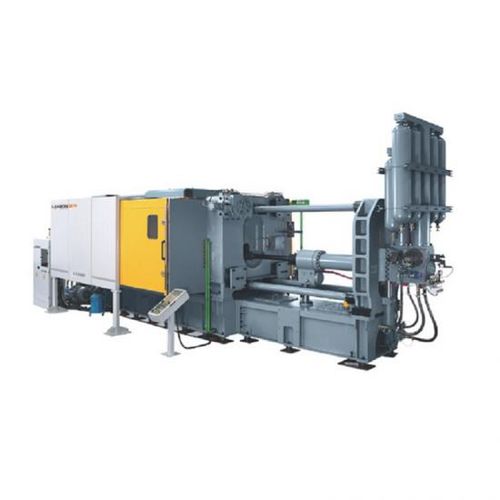

Cold chamber die casting machine LS1000

Clamping Force - kN - 10000 Clamping Stroke - mm - 880 Ejector Force - kN - 500 Ejector Stroke - mm - 200 Die Height （Min.-Max.） - mm - 450-1150 Platen Size（HxV） - mm - 1620X1620 Space Between Tie Bars（HxV） - mm - 1030X1030 Injection Force（with intensification） - kN - 882 Injection Stroke - mm - 800 Plunger Diameter - mm - 90-120 Injection Weight - kg - 9.5-17.0 Casting Pressure（with intensification） - MPa - 138.6-78 Casting Area - cm2 - 720-1280 Max.Casting Area (40MPa) - cm2 - 2500 Shot Injection Position（below center line） - mm - –100，–300 Plunger Penetration - mm - 300 Diamater Of Pressure Chamber Flange - mm - 240 Height Of Pressure Chamber Flange - mm - 20 Hydraulic Working Pressure - MPa - 16 Hydraulic Oil Tank Capacity - L - 1800 Machine Dimensions（LxWxH） - mm - 9500X4300X3900 Clamping system 1)Increase the die-cut space design to accommodate larger molds. 2)Larger mold clamping margin design, more effective to meet customer needs. 3) Template thickened design, more rigid. 4) The patented die-casting machine has a large-bar thread dustproof and waterproof structure to improve the stability and service life of the column. 5) The unique clamping hydraulic system combines the characteristics of the elbow mechanism to ensure high response, high efficiency and high safety. 6) Extremely short mode-locked return path minimizes back pressure and increases system speed. Injection system 1)The energy is added to the large design, the energy is sufficient, the system pressure drop is reduced, the injection repeatability is high, and the pressure and speed are more stable.
