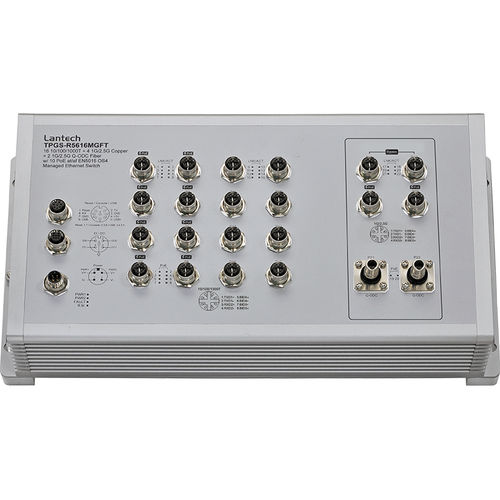

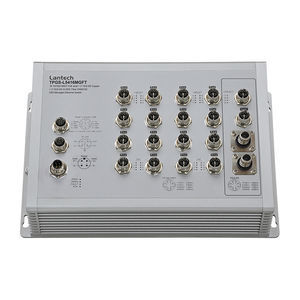

16 10/100/1000T + 4 1G/2.5G Copper + 2 1G/2.5G Fiber Q-ODC OM3 with 8/10/12/16 PoE , EN50155 OS4 Managed Ethernet Switch w/ Enhanced G.8032 Ring, PXE ; WVI input
Total 16 10/100/1000 + 4 1G/2.5G Copper +2 1G/2.5G Fiber Q-ODC OM3 w/8/10/12 (8 copper + 2/4 uplink 1G/2.5G copper PoE ports) or 16 PoE ports
Support IEEE802.3at/af up to 30W per port PoE management incl. Detection and Scheduling
Enhanced G.8032 ring protection < 20ms for single ring. Supports enhanced mode and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 8 MSTI /RSTP; support MRP ring
Support PXE to verify switch firmware with the latest or certain version on server
Miss-wiring avoidance & node failure protection
User friendly UI, including auto topology drawing ; Complete CLI
Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS ACL L2/L3,TACACS+, QinQ
Protocol based VLAN ; IPv4 Subnet based VLAN
Enhanced Environmental Monitoring for temp. actual input voltage, current and total power load
Optional smart bypass on 1G/2.5G copper ports in case of power failure, CPU hang (up to two pairs copper bypass and one pair fiber bypass)
Optional L3Lite or IEC 61375-2-5 TBN features to be upgradable
Inrush current protection
IP21 aluminum enclosure
