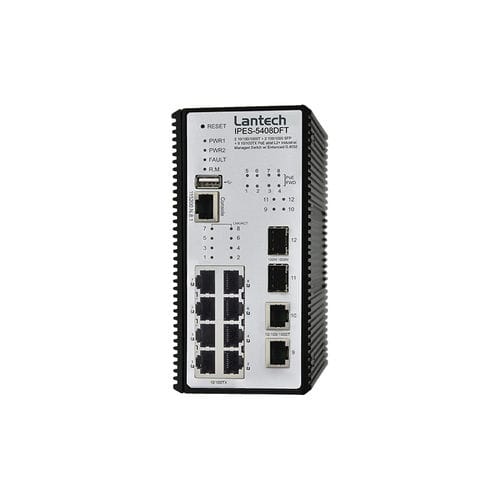

Managed ethernet switch IPES-5408DFT-PT series

12 portsgigabitDIN rail

8 10/100TX + 2 10/100/1000T + 2 100/1000M SFP PoE at/af L2+ Industrial Managed Ethernet Switch w/ Enhanced G.8032 Ring & MMS Compliant with IEC61850-3 & IEEE1613 Built-in MMS server based on IEC61850-90-4 switch data modeling for SCADA with monitoring and control Support IEEE802.3at/af up to 30W per port PoE management incl. Detection and Scheduling Enhanced G.8032 ring protection < 20ms with auto mode, enhanced mode, train mode Multi-VLAN and basic mode; Enhanced G.8032 ring covers multicast packets; MSTP 16MSTI /RSTP; support MRP ring Miss-wiring avoidance & node failure protection User friendly UI, including auto topology drawing and DDM threshold monitoring with dB values***; Complete CLI Support LACP link aggregation, IGMP v3/router port, MLD snooping, DHCP server & DHCP Option82; DHCP Snooping, Port based DHCP distribution, Mac based DHCP server, QoS by VLAN, SSH v2/SSL, HTTPS, INGRESS/EGRESS ACL L2/L3,TACACS+**, QinQ Protocol based VLAN ; IPv4 Subnet based VLAN. ±48VDC input ranges from ±44V~±56V USB port and N-key** to backup, restore the configuration file and upgrade firmware Environmental Monitoring for temp., voltage & current EN50121-4/50121-5 verification Lantech IPES-5408DFT is a high performance L2+ (Gigabit uplink) Ethernet switch with 8 10/100TX+2 10/100/1000T+2 Dual Speed 100/1000M SFP w/8 PoE 802.3af/at ports with total PoE budget 120W which complies with IEC 61850-3 & IEEE 1613. It provides L2 wire speed and advanced security function for network aggregation deployment.
