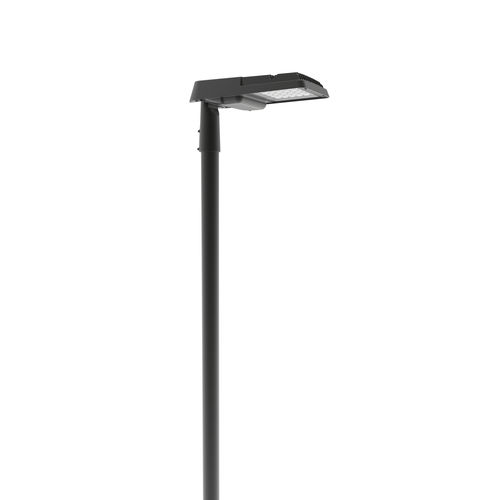

LED urban light BRIXIA
electricmetal

LED urban light
LED urban light
LED urban light
Add to favorites
Compare this product


Characteristics

Lighting technology
LED
Energy source
electric
Other characteristics
metal
Power

25 W, 50 W, 75 W, 100 W

Description

Die-cast aluminum fixture, with minimal thickness and dimensions, designed and built entirely in Italy. LED light source (lumileds) with color temperature standard Natural White 4000 K, 2200 K, 2700 K, 3000 K, 3500 K, 5000 K, 5700 K and 6500 K versions available on request. Available on request 25 W, 50 W, 75 W o 100 W with street optics H2, H3, H4 and HH. Tempered sodium-calcic glass, 5 mm thick. Guaranteed 91% transparency. Expanded silicone gaskets. Body Body and pole connection in die-cast aluminum alloy UNI EN 1706 (Low copper content) painted polyester powder. Stainless steel screws AISI 304. Tempered sodium-calcic glass, 5 mm thick. Guaranteed 91% transparency. Expanded silicone gaskets. Sources LED light source with color temperature standard Natural White 4000 K, 2200 K, 2700 K, 3000 K, 3500 K, 5000 K, 5700 K and6500 K versions available on request. High coefficient of performance chromatic CRI>80. PCO HT optics. Available on request 25 W, 50 W, 75 W o 100 W with street optics H2, H3, H4 and HH Supply Driver designed to provide the best performance, reliability and configuration options in road areas. Available on request DALI versions. Voltage 220-240 V AC 50 / 60Hz. Surge protection device: Integrated SPD, 10kV-10kA Operating temperature -40°+50° Applications Car parks, street, pedastrian areas Control System ON-OFF: fixed non-dimmable MV: Automatic dimming (virtual midnight) with default profile CLO: constant luminous flux DALI: DALI 2 digital dimmer interface DI: 1-10V analogue dimmer interface NEMA: possibility to apply the NEMA IP66 connector to apply compatible devices ZHAGA: possibility to apply the ZHAGA connector to apply compatible devices.
