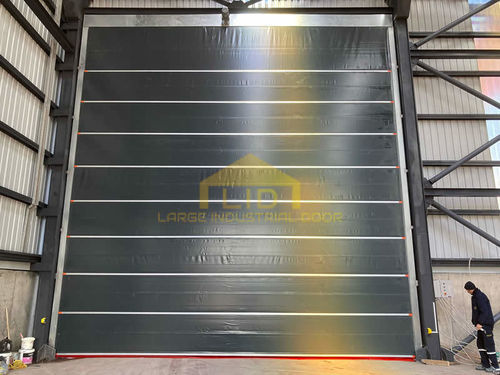

Hangar door MFHD100

fabricindoorindustrial

Product overview

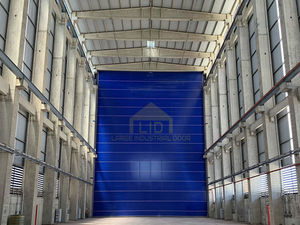

• PVC fabric Narrow Series hangar door (double-layer canvas) designed for large openings and high-wind environments.
• Double-layer construction with intermediate carcasses provides improved wind resistance and long-term, low-maintenance operation.
• Suitable for large hangars, shipyards, industrial storage areas, production facilities and agricultural barns; produced to custom widths and heights.

Usage areas

• Industrial storage areas and warehouses
• Shipyards and maritime facilities
• Aircraft hangars and maintenance shelters
• Large barns and agricultural buildings
• Production and manufacturing plants

Key features

• Double-layer (double canvas) curtain with internal carcasses for enhanced wind resistance
• Maintenance-free design aimed at long operational life
• Available in multiple color options
• Custom dimensions to fit large opening requirements

Equipment

• Geared motor (2.2–5 kW options)
• Increased number of rope drums sized to door dimensions
• Four limit switches
• Control unit with LCD interface
• Rope breakage safety system
• Main frame and curtain

Production time

• Standard production time: 10 days
• Depending on production load, lead time may be extended up to 20 days

Price

• Price is determined per order based on custom dimensions and options; no fixed list price

Technical table (from product specification)
Fabric: Brand: Mehler Texnologies; Weight: 900 g/m²; Tensile Strength: 4000 N/50 mm; Temperature Resistance: -40 °C / +70 °C; Fire Resistance: ISO 3795 < 100 mm/min
Motor: 2.2–5 kW, 1500 RPM, IE2, 230/400V 50Hz, IP55, 3-phase; Reduction Gear: DS050 I:40; Brake: ENR02 220V cooled + manual
Control Unit: EP500; LCD screen
Switch System: Special mechanical switch
Wind Resistance: reinforced by double-layer construction and internal carcasses
Insulation: bottom seal contacts ground to reduce airflow
Speed: Standard 70 cm/s (optional speed driver available)
Metal Parts: Steel
Color Options: Various (illustrated)
Optional Accessories: curtain photocell, remote control, loop detector, buzzer, radar

Technical specifications

• Fabric brand: Mehler Texnologies
• Fabric weight: 900 g/m²
• Fabric tensile strength: 4000 N/50 mm
• Temperature resistance: -40 °C to +70 °C
• Fire resistance: ISO 3795 < 100 mm/min
• Motor power: 2.2–5 kW, 1500 RPM, IE2
• Motor supply: 230/400V, 50Hz, IP55, 3-phase
• Reduction gear: DS050 I:40
• Brake type: ENR02 220V cooled + manual
• Control unit: EP500 with LCD screen
• Switch system: special mechanical switch
• Wind resistance: enhanced by double-layer curtain and internal carcasses
• Insulation: bottom seal contacts ground to limit airflow
• Standard operating speed: 70 cm/s (speed driver optional)
• Metal parts: steel
• Optional accessories: curtain photocell, remote control, loop detector, buzzer, radar
