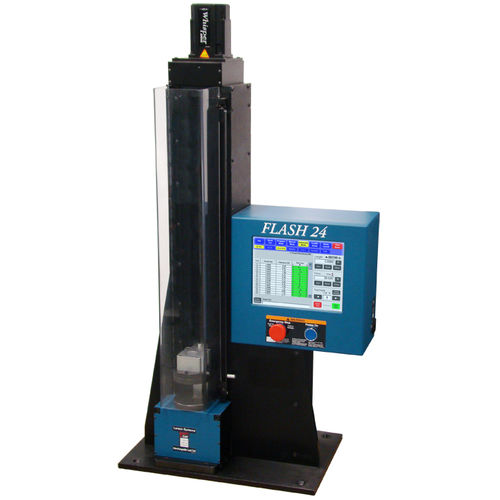

Compression testing machine FLASH 24

tensionmotorizedspring

Featuring FLASH Touch Screen Technology LSI revolutionized the spring testing industry again with the FLASH series 1,000 lb testers. Standard 22.5″ stroke 1″ Ø preloaded / pretensioned ball screws Ethernet port for PC network access Features Standard Features Standard 22.5″ range Standard 22.5″ stroke Standard 3.5″ Ø platform Up to 0.0001″ length resolution (0.0005″ standard) 2 to 1,000 lb load capacities FLASH interface Adjustable travel / test speed Compression and extension testing of force and length Touch screen / Full color LCD graphics Integrated Windows 10 Digital calibration NIST traceable calibration Built in deflection compensation Multiple measurement units (mm, in, lb, kg, N) Safety Features Test abort button Easy access to emergency shutoff Interlocked full enclosure Mechanical overload stops Software length / force limits Mechanical Features 1″ Ø preloaded / pretensioned ball screws Rigid preloaded linear bearings Smart interchangeable load cells (choose from 8) Optional Quick Change load cells (choose from 8) Whisper Servo drive: 200 lb and 1,000 lb Up to 1 3/8″ thru-rod Many testing accessories Connectivity Ethernet port for PC network access USB for easy printing / software updates RS 232 Automation interface Remote support / diagnostic capability via the internet
