Diameter measuring system

resistancedepthimage clearness

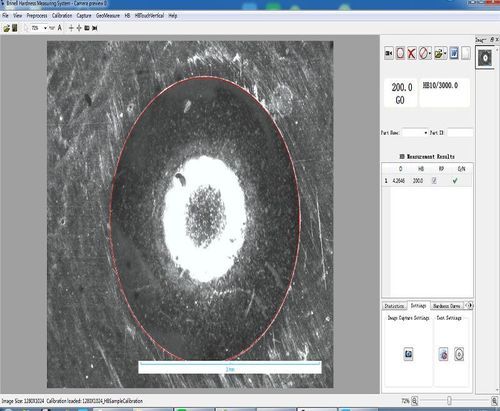

Introduction CCD Image automatic measuring system combines computer software and the hardness tester. The entire test procedure is completed through easy keyboard and mouse operation, which avoids visual fatigue and human error, and can test different kinds of hardness. It is equipped with a CCD camera for easy observation and can directly observe and measure the indentation on the display. Test conditions can be set, and results are clearly and conveniently operated and displayed. The system can automatically calculate infiltration depth, perform statistical calculations, conversions, display curves, judge qualification, and save results as WORD or EXCEL documents. Functions - Basic function: Includes all functions of image processing and measurement system, such as image capture, calibration, image processing, geometric measurement, annotation, photo album management, and fixed times print, etc. - Automatic measurement: Automatically captures the indentation, measures the diameter, and calculates the corresponding value of Brinell hardness. - Hardness conversion: The system can convert the measured Brinell hardness value (HB) to other hardness values such as HV, HR, etc. - Data statistics: Automatically calculates the average value, variance, and other statistical values of the hardness. - Standard exceeding alarm: Automatically marks abnormal values; when the hardness exceeds the specified value, it automatically alarms. - Test report: Automatically generates reports in WORD or EXCEL format; report templates can be modified by the user. - Easy to use: Click on the interface button, press the camera button, or press the run button to automatically complete all work; for manual measurement or result modification, just drag the mouse. - Strong noise resistance: Advanced and reliable image recognition technology can handle indentation recognition on complex sample surfaces; two kinds of automatic measurement modes deal with extreme situations. - Automatic calibration: The system provides a calibration function, convenient for indentation size measurement and can be calibrated at any time. With a calibration grid, the system can automatically implement full calibration for grid intersection points to eliminate measurement error caused by lens distortion. Standard Configuration - Computer (CPU: I3, Memory: 4G, HD: 500G, 19 inch LCD screen) - 1 set - Ink Jet Printer - 1 set - CCD Camera (1.30 Million Pixel) - 1 set - USB Key - 1 pc - Measuring Software - 1 pc - Product Category: Hardness Testing Machine > Brinell Hardness Tester - Brand: Laryee Technology Co., Ltd. Technical Specifications / Features: - Combines computer software and hardness tester for automated measurement - Equipped with CCD camera for direct observation and measurement - Automatic calculation, statistics, conversion, and report generation - Supports WORD and EXCEL report formats - Automatic calibration with calibration grid - Noise-resistant image recognition technology - Standard configuration includes computer, printer, CCD camera, USB key, and measuring software
