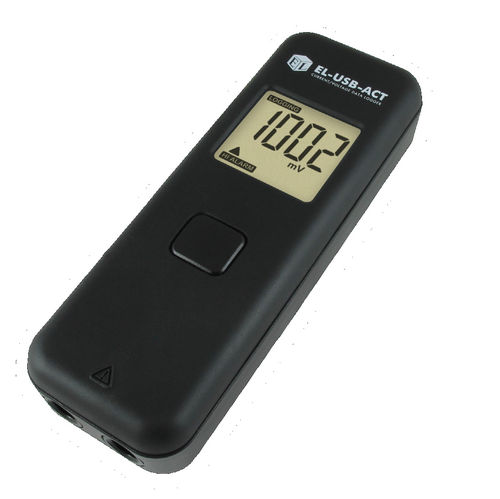

Voltage data-logger EL-USB-ACT
currentUSBwith LCD display

voltage data-logger
voltage data-logger
Add to favorites
Compare this product


Measured quantity
voltage, current
Connector type
with LCD display
Other characteristics


Overview When used with a current clamp, this standalone data logger measures and stores up to 127,232 a.c. and d.c. current readings over a 0 to 1000A d.c. measurement range (0 to 723A for a.c.). In ‘energy monitoring’ mode, this data is converted into power, energy (using a user defined voltage value) and cost (using a user supplied energy unit cost). The millivolt measurement mode allows for direct measurement of voltage, up to 1V d.c. (700mV a.c.). The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the free software. The software has provision for a clamp scaling factor (the clamp input-output ratio of amps to millivolts). Stored data can then be graphed, printed and exported to other applications. The high contrast LCD can show a variety of current, power, energy and cost information. At the touch of a button, the user can cycle between the most recent, maximum and minimum measurement values. The data logger is fitted with 2 replaceable AA batteries. Specification Measurement range (a.c.): 707mV a.c. RMS Equivalent clamp measurement range (a.c.): 0 to 723A a.c. Accuracy (a.c.): 5% (±2 count) Measurement range (d.c.): -1000 to 1000mV d.c. Equivalent clamp measurement range (d.c.): 0 to 1000A d.c. Accuracy (d.c.): 2% (±1 count) Application Info The EL-USB-ACT is suitable for a wide variety of applications. These include: •Outside Environmental Data •Facilities Management
