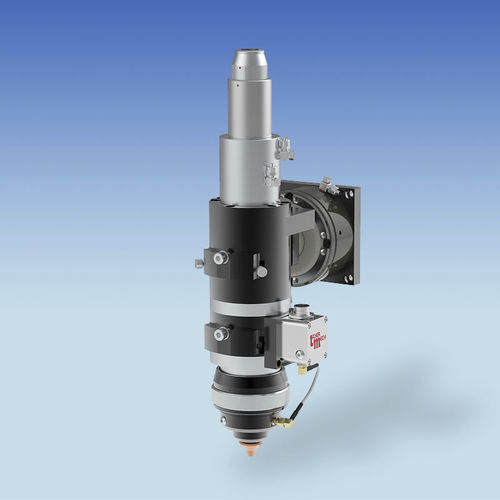

Process laser head AccuFiber™ Series

fiberfor weldingcutting

AccuFiber™ Laser Processing heads are a flexible, modular design that deliver accurate focusing with unlimited configuration possibilities. The modular aspect of the AccuFiber™ Series supports a variety of setup and process options. Offered par-focal versions can accommodate multiple focal lengths without changing the overall length of the head. In most configurations, a second lens drawer is included for the cover glass allowing ease of access. AccuFiber™ heads can be configured for cutting or welding with a wide range of collimator choices and focusing lengths. AccuFiber™ heads provide simple and intuitive adjustments for collimation, beam centering, viewing and focus setups. • Straight or right angle fiber input • Quick and easy access to optics • Capacitive height sensing (cutting) • Cross Jet or Coaxial nozzle (welding) • Deionized water compatible (stainless steel circuit) • Optional crash protection • Optional direct-cooled optics • Camera viewing option Power Rating: 6 kW (16+ kW direct-cooled option) Clear Aperture: 24, 35 and 48 mm options Collimation Focal Lengths: 60, 75, 100, 120, 150, 200* Focusing Lens: Various (up to 1000 mm)* Fiber Connections (others available on request): QD (LLK-D, LCA), QBH (HLC-8), Q5 (LLK-B)
