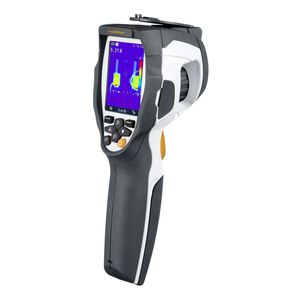

Thermal imaging camera ThermoCamera Compact Plus

measuringinfraredfull-color

Compact thermal imaging camera for applications in construction, electrical engineering and mechanical engineering Description: – High-resolution 2.8" colour display for reliable evaluation and analysis of temperature conditions – Infrarod sensor with 80 x 80 pixel resolution and focusable infrared lens for detailed and varied image analysis – Large measuring range from -20°C...350°C, adjustable emissivity range from 0.01 to 1.0 or selection from material table – Analysis in various image modes – infrared, VIS, picture-in-picture – Selectable standard colour pallets: IRON, RAINBOW, GREY, GREY-INV – Central measuring point for temperature analysis and additional automatic hot/cold spot marking – Measured value correction for ambient and reflected temperature for easy compensation of error effects – Built-in USB 2.0 PC interface for smooth data exchange and additional PC camera function Technical Data: IR sensor: 80 x 80 measuring points , 25 fps Uncooled microbolometer , 8-14 ?m IR optics: Germanium interchangeable lens 17° x 17° FOV 3.78 mrad IFOV Adjustable focus 0.5 m - 5 m Thermal sensitivity: NETD 0.1°C Accuracy: ± 2°C or ± 2% of measured value Me Package Contents: Inclusive: ThermoCamera Compact, Li-Ion battery pack with external power supply/battery charger and international adapter, USB cable , video cable , 8 GB micro-SD card with adapter, carrying case
