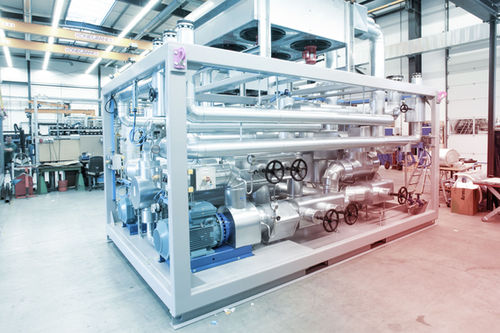

Industrial heating unit ITH series

circulating watercirculating oiloil

Depending on the required outflow temperature, heat transfer units use either thermal oil, water or water/glycol as the heat carrier. They are electrically heated and generate a temperature-controlled liquid flow. Heating and cooling systems in the heat transfer unit line always consist of the electric heater module and a maximum of one additional heat exchanger module (cooler). In this version, or in combination with a process cooling unit, a heating and cooling system is created with an extended working temperature range. Your advantages at a glance Digital temperature controllers for the control of consumers/product temperature, as well as outflow temperature Infinitely controlled electrical stainless steel heating bodies So that the heating output is adjusted to the actual energy requirements and a long service life of the thermal oil and heating elements is guaranteed Automatic shut-off valve in the cooling water inflow To prevent contamination of the heat exchanger Hermetic model without gaskets So that oil and water are not mixed Simple replacement of the heat exchanger With water, brine or air-cooled stainless steel plate-heat exchanger and tubular heat exchanger in a flange model FAT (Factory Acceptance Test) in the customer's presence For checking that the systems are designed for customer requirements and initial training and test run even before delivery
