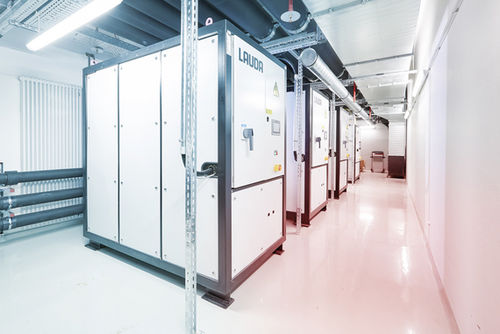

Centralized cooling plant SUK series

Heating and cooling systems from the process cooling unit line of the type series SUK always consist of the modules compressor, pump, expansion vessel, evaporator and condenser. Depending on the lowest working temperature, single stage (down to -35 °C) or two stage compressors (down to -50 °C) are used. At very low temperatures down to -100 °C, two cooling systems in cascade connection are used. Cooling of the refrigerant condenser is done with cooling water or air. Output is regulated infinitely and precisely by injection control. If several compressors are used, an incremental switch ensures energy-saving, low-wear, partial load operation (automatic compressor control). With an electric heater or steam-heated heat exchanger, the SUK type series can be used for temperatures from -100 to 150 °C. Pre-cooling with on-site brine or air can be easily implemented using the modular system. The application alone decides whether or not a cold accumulator is beneficial. Your advantages at a glance Digital temperature controllers for the control of consumers/product temperature, as well as outflow temperature Energy-efficient cooling system with high dynamic Thanks to modern refrigeration modules for the best possible configuration of compressor and output Automatic shut-off valve in the cooling water inflow To prevent contamination of the heat exchanger Hermetic model without gaskets So that oil and water are not mixed Infinitely controlled electrical stainless steel heating bodies This way, the heating output can be adapted to the actual energy requirement FAT (Factory Acceptance Test) in the customer's presence
