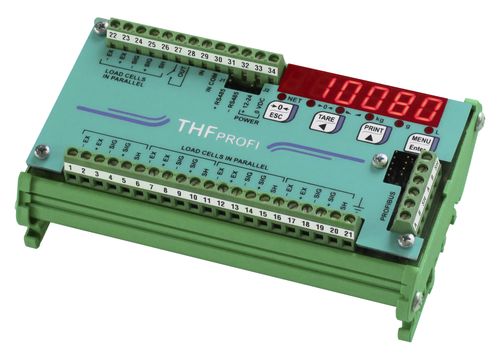

LED display weight indicator-transmitter THFPROFI series

DIN railexplosion-proof

RS485 – PROFIBUS is a weight transmitter or indicator with dimensions 148 x 92 x 50 mm. It has six digit red LED display unit with display range of 999999 and four-key keypad to support calibrations. Other key features include Slave profibus DP port, RS485 port supporting Modbus RTU/Laumas ASCII protocol and one logic input and one relay output. It belongs to OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI and is available in various Box versions IP67, IP67 ATEX II 3GD. The transmitter has 24bit 4.8 kHz A/D converter and a mounting on Omega/DIN rail for back panel or junction box.
