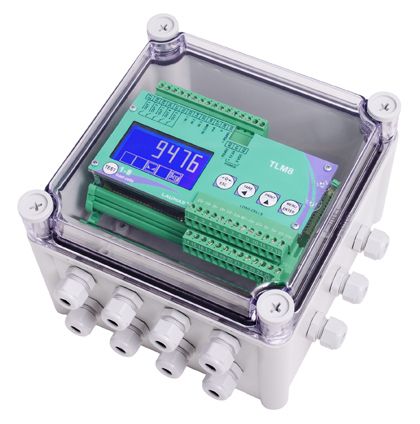

Digital weight indicator-transmitter TLM8 PROFIBUSDIN railIP67
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Mounting
- DIN rail
- Protection level
- IP67
Description
The TLM8 offers the benefits and performance of an advanced digital weighing system even using analog load cells. 8 independent reading channels for load cells. Digital equalization. Automatic diagnostics.
16-bit Analog output: 0/4-20 mA; 0-5/10 V
Slave PROFIBUS DP port (max 32 instruments without line repeaters; max 126 instruments with line repeaters)
RS485 port (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved, class III, 10000 divis. 0.2μV/VSI
Mounting on Omega/DIN rail for back panel or junction box
8 channels A/D converter - 24bit (16000000 points) 4.8 kHz
Display range 999999
Catalogs
No catalogs are available for this product.
See all of LAUMAS Elettronica‘s catalogs
