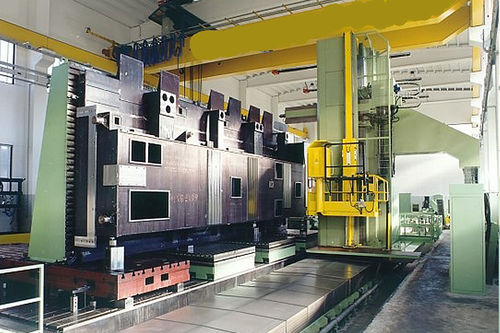

CNC boring and milling center HB 260MMuniversalhydrostatic5-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- universal
- Other characteristics
- column type, floor, hydrostatic, 5-axis
- X travel
6,000 mm
(236 in)- Y travel
Min.: 4,000 mm
(157 in)Max.: 7,000 mm
(276 in)- Z travel
1,600 mm
(63 in)- W travel (spindle)
1,100 mm
(43 in)- Spindle diameter
200 mm
(8 in)- Power
100 kW
(135.96212 hp)
Description
Max. Vertical Area - mm. - 7.000
with Universal Head - mm. - 7.500
Spindle - -
Spindle Taper - ISO - 50 – Big Plus
Max. Rotation Speed - RPM - 3.000
Motor Max Torque - Nm - 12.500
Mobile Head Cross Section - mm. - 560 x 515
Travels - -
Total Cross Z + W - mm. - 2.700
Feeds - -
Workings - mm./1′ - 7.500
Rapids - mm./1′ - 15.000
Aprox. Minimum Net Weight - Ton. - 100
