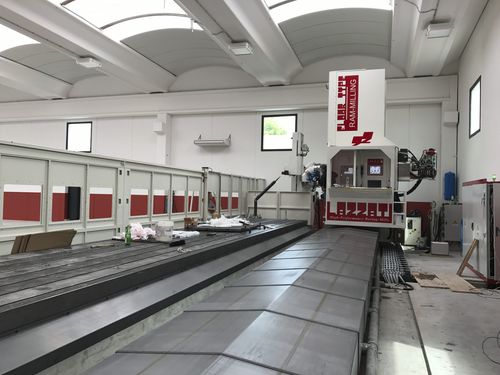

CNC boring and milling center HB 2M Evo4.03-axis
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- X travel
4,000 mm
(157.48 in)- Y travel
Max.: 3,000 mm
(118.11 in)Min.: 2,000 mm
(78.74 in)- Z travel
1,300 mm, 1,600 mm
(51.18 in, 62.99 in)- Power
75 kW
(101.97159 hp)
Description
Max. Vertical Area - mm. - 3.500
A Axis - pos. - 360.000
C Axis - pos. - 360.000
Taper - ISO - 50 – Big Plus
Max. Speed Rotation - RPM - 6.000
RAM Section - mm. - 515 x 480
Feeds - -
Workings - mm/1′ - 15.000
Rapids - mm/1′ - 24.000
Approx. Minimum Net Weight - Ton. - 40
