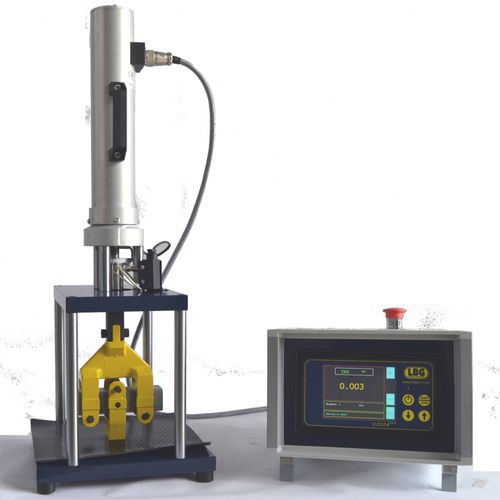

Tensile testing machine M052

bendingtensile strengthcomputer-controlled

Used lo determine the flexural strength of 40x40x160 mm mortar specimens and the tensile strength of briquettes. Using for fully Automatic FLEXION tests with constantload rate. It is used for the measurement of Flexionstrength values into the building sector. The apparatus ( M053 ) is constituted by an alloy body fixedon a frame ( M053 - M052 -ACC ) to 4 columns in which areaccommodated the accessories test .The miniature load cell guarantees a high reliability ofmeasurement results. The complete management of the testsis performed through the indicator UDI24PRO Digital 24-bitmicroprocessor with color LCD TOUCHSCREEN with 240 x 128pixels. • Selectable Menu in Italian, English, Spanish and Portuguese. •Set specimen type with automatic calculation sample area. • Setting the desired load rate (N/s; Mpa/s; mm/min) and relative tolerance +/-%. • Possibility to create various test methods. • Automatic calculation of maximum force Ff (kN) and Strenght Rf (Mpa). • Automatic return at the end of each test 3-10 seconds. • Automatic saving of results in internal memory, at the end of each test.
