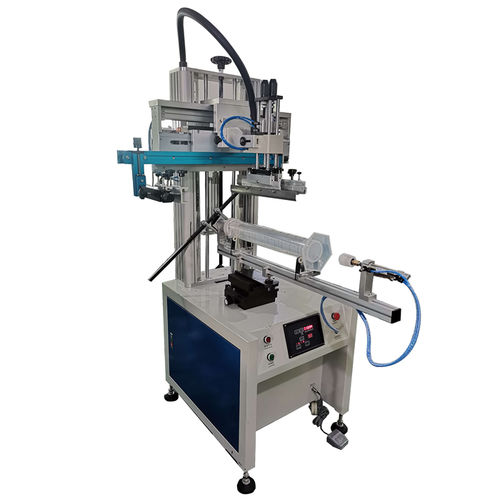

Automatic screen printing machine 400L
multi-colorfor the glass industryfor the plastics industry

automatic screen printing machine
automatic screen printing machine
automatic screen printing machine
automatic screen printing machine
Add to favorites
Compare this product


Characteristics

Control
automatic
Color
multi-color
Applications
for the glass industry, for the plastics industry
Other characteristics
for cylindrical products, semi-automatic
Printing speed

Min.: 1 p/h

Max.: 500 p/h

Description

Product name:Laboratory Graduated Cylinder silkscreen printing machine Model Number: 400L Specifications: 1.Max printing thickness :250mm 2.Power support:220V 50HZ 3.Air consumption:500 Litre/Min 4.Max product diameter:Φ250mm*650mm 5.Max product arc length:370mm 6.Max printing area:550x320mm 7.Max printing speed:1500Pcs/H r 8.Machine size:90X80X160CM(LxWxH) 9.Machine Weight:250KG 10.Gross Weight: 280KG 11: Packing Size: 94*87*164CM Advantages: 1. Controlled by microprocessor,easy operation,running stably and accurately. 2. 4-digit auto counter built-in. 3. Cast aluminum machine frame,low weight and high intensity,adjust convenient. 4. Separate adjustment of the pad up/down stroke speed. 5. ink scraper is auto balance keeping in printing. 6. With the function of ink scraping nonstop without printing in order to prevent the ink from drying. 7. Ink cup is turnable and adjustable in vertical and horizontal direction. 8. With super long slide stroke to print large size workpiece. 9. Pneumatic part of the installation of the German FESTO tubes and Air valve, Ormon Sensor, SMC Cylinder. Machine Fittings: 1. One frame, 2. One tool box, 3. 1 Piece of squeegee. 4. One jar. Application Scope: Compare with 400AB, this machine is with longer printing working table for longer product's silkscreen printing on the Laboratory-Grade 500ml Graduated Cylinder, Food-Grade Polypropylene Measuring Pitcher,RUBBERMAID 4 Quart Capacity Measuring Cup,Chemical-Resistant Polypropylene 1000ml Graduated Cylinder etc.
