Electro-pneumatic hot foil stamping machine FCM-680/1300/1400/1500

for large print areaswith automatic feederfor leather

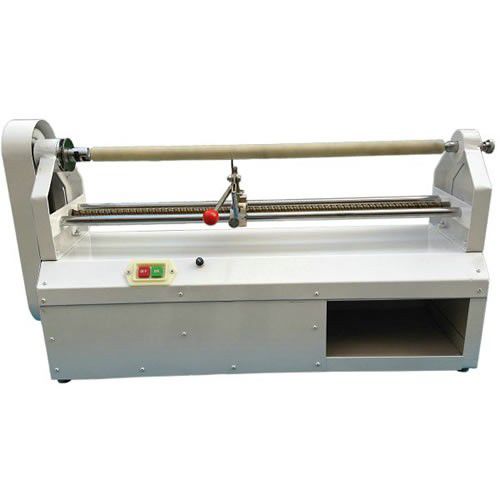

Product name:Hot Stamping Foil Paper Cutter Model Number: FCM-680/1300/1400/1500 Description: Hot Stamping Foil Paper Cutter Parameters: FCM-680 1: Max.Cutting Length: 680mm 2: Max.Out Diameter:100mm 3: Diameter of foil core:Φ25mm-Φ27mm 4: Motor Power:370W,220V 5: Machine Weight(Net/Gross):45kg/55kg 6: Machine dimension: 88*26*45CM 7: Packing Dimentsion: 95*34*53CM FCM-1300 1: Max.Cutting Length: 1300mm 2: Max.Out Diameter:100mm 3: Diameter of foil core:Φ25mm-Φ27mm 4: Motor Power:470W,220V 5: Machine Weight(Net/Gross):85kg/110kg 6: Machine dimension: 130*26*45CM 7: Packing Dimentsion: 140*34*53CM FCM-1500 1: Max.Cutting Length: 1500mm 2: Max.Out Diameter:100mm 3: Diameter of foil core:Φ25mm-Φ27mm 4: Motor Power:570W,220V 5: Machine Weight(Net/Gross):100kg/120kg 6: Machine dimension: 150*26*45CM 7: Packing Dimentsion: 160*34*53CM Product Description Features It could cut the foil paper into different small sizes with high efficiency but low waste. It is with easy design and adjustment. It could fix automatic by the inside diameter, the products diameter could adjustment, the length changed by the screw rod moving, accurate and reliable. Cutting more precisely, the thinnest could be 2mm. Electric control, fast and efficient, cutting edge smoothly, good effect Also apply to gold foil paper, printing ribbons, thermal transfer ribbons and other reel diameter size range within 25-27mm non-film products. Good packaging: It is well packaged with waterproof membrane at first, then well fixed. Aluminum Foil cutting machine, electrochemical aluminum cutting machine is disigned for the foil cutting into different small size peices.
