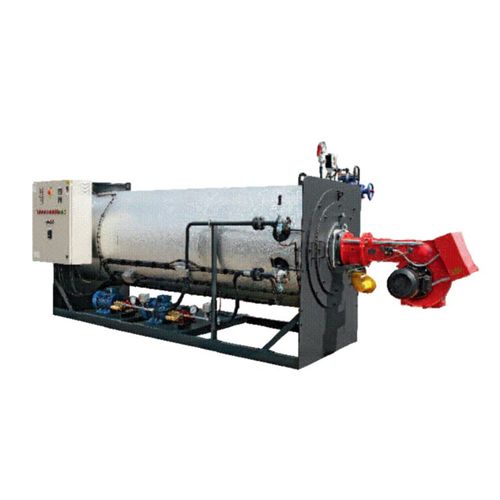

Steam boiler CFH
gaswater tubehorizontal

steam boiler
steam boiler
steam boiler
Add to favorites
Compare this product


Characteristics

Product
steam
Power source
gas
Firebox
water tube
Configuration
horizontal
Other characteristics
three-pass
Power

Min.: 70 kW

Max.: 4,186 kW

Steam production

Min.: 100 kg/h
(220.46 lb/h)

Max.: 6,000 kg/h
(13,227.74 lb/h)

Pressure

9.81 bar, 11.76 bar
(142.28 psi, 170.56 psi)

Description

CFH series steam generators are three effective smoke turns forced circulation boilers with monoblock structure on unique basement. The possibility of obtaining steam in few minutes and the reduced overall dimensions make them the best choice in a wide range of use. The functioning is completely automatic and is directly controlled by the control panel installed on board. The insulating shell is formed by mineral wool airbeds with external finish in sheet-aluminium. The high qualitative standard used in the planning phases and in the choice of materials used results either at performance level, with 90% efficiency and low NOx values, or in terms of reliability and duration in time. Generators are supplied with CE Verification Certification of unique product (assembly) according to the directive 97/23 EC (PED) notified by a Certification Body. The advantages of the CFH forced circulation generators are: 90% warranted efficiency Execution of three effective smoke turns in horizontal and vertical version High title of steam thanks to the particular structure of the tube bundle, of the condensation separator in the steam collector and to the possibility of adjusting the water flow Exemption from the obligation of assistance of the enabled conductor Reduced emissions of pollutants thanks to the generous reduction of the combustion chamber
