Strain wave gear reducer LCD series
coaxialsplined100 - 200 Nm

Strain wave gear reducer - LCD series - LEADER HARMONIOUS DRIVE SYSTEMS CO.,LTD. - coaxial / splined / 100 - 200 Nm

Add to favorites

Compare this product

Characteristics

Type

strain wave

Shaft orientation

coaxial

Shaft configuration

splined

Torque

100 - 200 Nm, 20 - 50 Nm, 50 - 100 Nm, 10 - 20 Nm, 1 - 5 Nm, 5 - 10 Nm

Applications

machine

Rotational speed

Max.: 8,000 rpm
(50,265.4825 rad.min-1)

Min.: 4,000 rpm
(25,132.7412 rad.min-1)

Gear ratio

Max.: 160 unit

Min.: 50 unit

Weight

Max.: 3.8 kg
(8.38 lb)

Min.: 0.48 kg
(1.06 lb)

Description

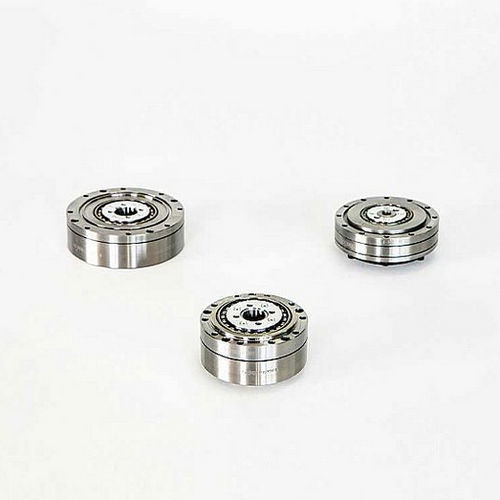

The flexspline of the LCD strain wave gear is an ultra-thin cup-shaped design. The whole machine adopts an ultra-flat structure, which is very suitable for use in robot end joints where a harmonic speed-reducing effect is required. The LCD ultra-flat cup-shaped flexspline strain wave gear has an ultra-flat lightweight structure, small size, high rigidity, and low backlash. Leaderdrive ultra-flat strain wave gears are available in gear and component set forms. Contact our technical team with your specific needs to receive the best solution. Applications: The LCD ultra-flat cup-shaped flexspline strain wave gear can be widely used in: robots, humanoid robots, printed circuit manufacturing equipment, metal machine tools, and other fields. Models: The LCD ultra-flat cup-shaped flexspline strain wave gear models are based on the connection form of the input terminal and the wave generator cam. Currently, there is only the LCD-I series: LCD-I: The input shaft is directly matched and connected with the inner hole of the wave generator.
