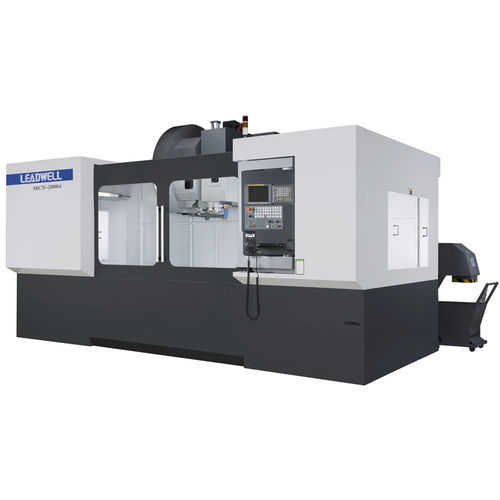

3-axis CNC machining center MCV series vertical24 tools30 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis
- Spindle orientation
- vertical
- Number of tool stations
- 24 tools, 30 tools
- Applications
- heavy-duty
- Other characteristics
- high-rigidity
- X travel
1,300 mm, 1,520 mm, 2,040 mm
(51 in, 60 in, 80 in)- Y travel
635 mm, 800 mm, 1,000 mm
(25 in, 31 in, 39 in)- Z travel
610 mm, 720 mm, 1,000 mm
(24 in, 28 in, 39 in)- Rotational speed
4,000 rpm, 6,000 rpm
(25,133 rad.min-1, 37,699 rad.min-1)- Power
15 kW
(20.39 hp)- Work feed X-axis
20,000 mm/min
(13 in/s)- Work feed Y-axis
20,000 mm/min
(13 in/s)- Work feed Z-axis
20,000 mm/min
(13 in/s)- Tool-changing time
3 s, 10 s
Description
*FEA Analysis
*Heavy duty square ways
High Reliability:
*New couter weight system
*Front type chip conveyor for outstanding chip removal
VIDEO
