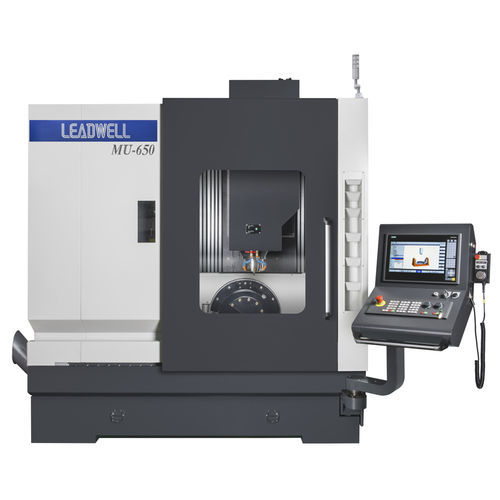

5-axis CNC machining center MU seriesvertical30 toolshigh-rigidity
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Number of tool stations
- 30 tools
- Other characteristics
- high-rigidity
- X travel
350 mm, 400 mm, 620 mm
(14 in, 16 in, 24 in)- Y travel
300 mm, 350 mm, 520 mm
(12 in, 14 in, 20 in)- Z travel
250 mm, 350 mm, 460 mm
(10 in, 14 in, 18 in)- Rotational speed
12,000 rpm, 15,000 rpm
(75,398 rad.min-1, 94,248 rad.min-1)- Power
7.5 kW, 11 kW
(10.2 hp, 14.96 hp)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Work feed Z-axis
36,000 mm/min
(24 in/s)
Description
– FEA Analysis.
– Optimized Structure for Stable Moving.
– Dual nuts ball screw design in X and Y axis.
– Three axis roller type high rigidity guide way.
– 4 sets of bearings transmission system design.
– B axis motor driving by gear design.
High Reliability
– Ball screw nuts cooling system available
– Ball screw bearing lubrication system design.
– Linear scale (X/Y/Z) & Rotary encoder (B/C) available.
– Magnetic scale available
– Surrounding coolant system
