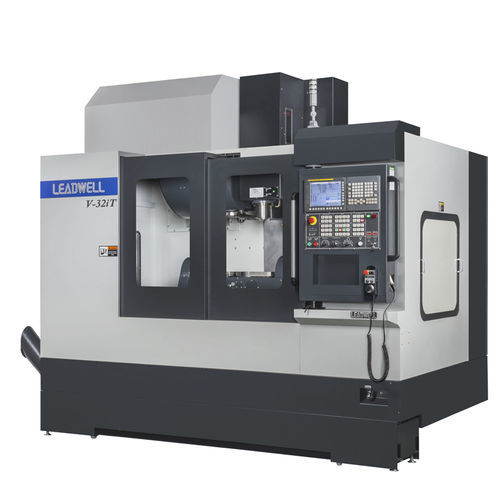

5-axis CNC machining center iT series verticalwith rotary table24 tools
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Structure
- with rotary table
- Number of tool stations
- 24 tools
- Other characteristics
- high-rigidity
- X travel
800 mm, 840 mm, 846 mm, 1,270 mm
(31 in, 33 in, 33 in, 50 in)- Y travel
460 mm, 520 mm, 635 mm, 800 mm
(18 in, 20 in, 25 in, 31 in)- Z travel
387 mm, 447 mm, 488 mm, 680 mm
(15 in, 18 in, 19 in, 27 in)- Rotational speed
12,000 rpm
(75,398 rad.min-1)- Power
11 kW, 15 kW, 18.5 kW, 26 kW
(14.96 hp, 20.39 hp, 25.15 hp, 35.35 hp)- Work feed X-axis
36,000 mm/min
(24 in/s)- Work feed Y-axis
36,000 mm/min
(24 in/s)- Work feed Z-axis
36,000 mm/min
(24 in/s)- Tool-changing time
1.8 s, 4 s
Description
*FEA Analysis
*Rollar type guide way
High Reliability:
*Roller type motion system
High Flexibility:
*4/5 axis rotary table available
*Linear scale available
