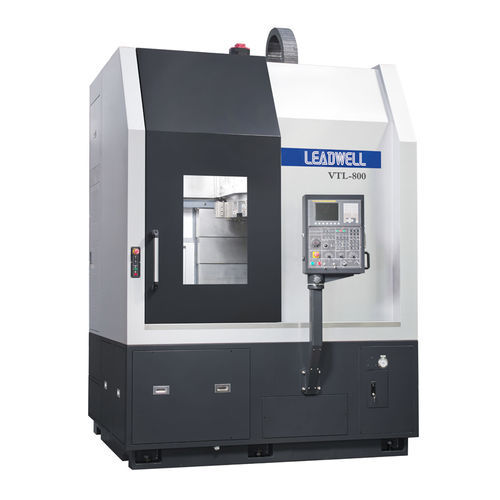

CNC turning center VTL series vertical2-axishigh-speed
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Spindle orientation
- vertical
- Number of axes
- 2-axis
- Other characteristics
- high-speed, high-rigidity
- Diameter
650 mm, 700 mm, 710 mm, 900 mm
(25.59 in, 27.56 in, 27.95 in, 35.43 in)- Spindle speed
2,000 rpm, 2,500 rpm
(12,566.371 rad.min-1, 15,707.963 rad.min-1)- Maximum cutting diameter
460 mm, 600 mm, 800 mm
(18 in, 24 in, 31 in)- Maximum cutting length
500 mm, 760 mm
(20 in, 30 in)- Axe X
230 mm, 300 mm, 400 mm, 410 mm
(9 in, 12 in, 16 in, 16 in)- Axe Z
500 mm, 760 mm
(20 in, 30 in)
Description
*Ac servo motor & high accuracy roller ball screw, direct drive, as well as
pretension, less of thermal extension, enhance repeatability and positioning accuracy
*Easy for auto connection machining
*Friendly design of operation
*Easy chip removal
*Slant bed-easy for chips flow into the chip conveyor
*Swivel control panel
