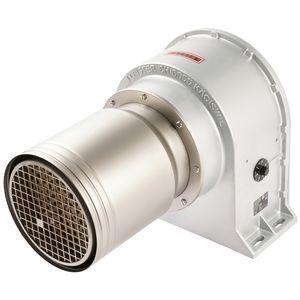

Hot air blower MISTRAL 6 PREMIUMcentrifugalsingle-stagefor heating
Add to favorites
Compare this product
Characteristics
- Type
- hot air
- Technology
- centrifugal
- Number of stages
- single-stage
- Applications
- for heating
- Other characteristics
- axial, single-phase, brushless
- Flow
Max.: 400 l/min
(105.669 us gal/min)Min.: 300 l/min
(79.252 us gal/min)- Operating pressure
Max.: 3,000 Pa
(0.435 psi)Min.: 2,500 Pa
(0.363 psi)- Nominal power
Max.: 4,500 W
(6.118 hp)Min.: 2,300 W
(3.127 hp)- Sound level
65 dB
- Weight
Max.: 1.5 kg
(3.31 lb)Min.: 1.3 kg
(2.87 lb)- Length
Max.: 352.2 mm
(13.87 in)Min.: 321.2 mm
(12.65 in)- Height
91.2 mm
(3.6 in)
Description
• Brushless blower motor
• Integrated switch for a potentiometer
• Heater and blower can be turned on separately
• Ideally suited for continuous operation
• Requires very little maintenance
Leister's MISTRAL 6 PREMIUM is equipped with a low-maintenance, brushless blower motor. MISTRAL 6 PEMIUM is available with a 36.5 mm (1.37 in) or 50 mm (1.97 in) tube diameter. The heating tube has a special diaphragm for an even airflow distribution and an optimized, aerodynamic airflow velocity. The practical mounting plates on the device ensure easy installation.
Brushless motor
Thanks to its brushless motor, the new MISTRAL 6 PREMIUM is perfectly suited to continuous operation.
Optimized air tube
Special diaphragm for an even airflow distribution and an optimized, aerodynamic airflow velocity.
Mounting plates on the device
The MISTRAL 6 PREMIUM has a practical and sophisticated industrial design via mounting plates directly on the device.
