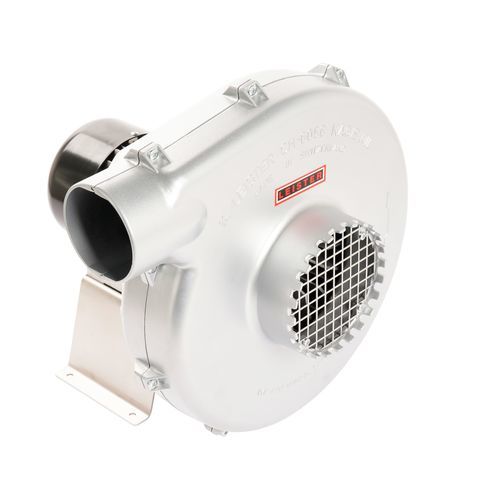

Air blower ASO

radialsingle-stagedrying

Product Details
At 60 Hz, the medium-pressure ASO blower from Leister moves up to 487.33 cfm (13800 l/min) air. The housing is made from solid cast aluminum. With the appropriate accessories, multiple Leister air heaters can be supplied at the same time, making it ideal for use in production lines, for example in drying sequences.

Key features

• 60 Hz moves up to 13800 l/min resp. 487.33 cfm air
• Simultaneously supplies several air heaters
• Allows hot air recirculation up to 200 °C / 392 °F

Highlights

• High air volume
• Hot air recirculation possible
• Suitable for drying processes

Technical Data
Blower type: Radial blower
Phases: 3x
Voltage at 50 Hz: 230/400 V
Voltage at 60 Hz: 265/460 V
Frequency: 50/60 Hz
Blower power at 50 Hz: 550 W
Blower power at 60 Hz: 660 W
Airflow (20 °C) at 50 Hz: 12000 l/min
Airflow (20 °C) at 60 Hz: 13800 l/min
Static pressure at 50 Hz: 1450 Pa
Static pressure at 60 Hz: 2070 Pa
Max. air inlet temperature: 200 °C
Max. ambient temperature: 60 °C
Noise emission level: 70 dB (A)
Air inlet (outer diameter): 134 mm
Air outlet (outer diameter): 90 mm
Length: 366 mm
Width: 361 mm
Height: 366 mm
Weight: 15 kg
Power cable length: 0 m
Plug: without plug
Approvals: CE; EAC; UKCA
Protection class (IEC 60529): IP54
Protection class: I

Caractéristiques / spécifications techniques

• Blower type: Radial blower
• Phases: 3x
• Voltage 50 Hz: 230/400 V
• Voltage 60 Hz: 265/460 V
• Frequency: 50/60 Hz
• Power 50 Hz: 550 W
• Power 60 Hz: 660 W
• Airflow 50 Hz: 12000 l/min
• Airflow 60 Hz: 13800 l/min
• Static pressure 50 Hz: 1450 Pa
• Static pressure 60 Hz: 2070 Pa
• Max. air inlet temperature: 200 °C
• Max. ambient temperature: 60 °C
• Noise emission: 70 dB (A)
• Dimensions (L×W×H): 366 × 361 × 366 mm
• Weight: 15 kg
• Inlet / Outlet diameters: 134 mm / 90 mm
• Plug: without plug
• Approvals: CE; EAC; UKCA
• Protection class (IEC 60529): IP54
