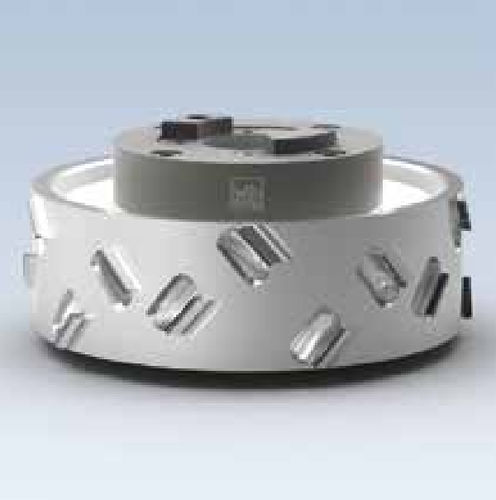

Insert milling cutter HF 230 2 series
anglecoatedfor plastics

insert milling cutter
insert milling cutter
insert milling cutter
Add to favorites
Compare this product


Characteristics

Construction
insert
Type
angle
Material
coated
Treated material
for plastics
Diameter

125 mm, 150 mm (4.92 in)

Rotational speed

13,600 rpm, 13,700 rpm (85,451.32 rad.min-1)

Description

Jointing / milling cutter on hydro sleeve Application: For tear-free and low noise jointing of workpiece edges side with and against feed (jump cutting). Machine: Edgebanding machines with zero joint technology. Workpiece material: Chip and fibre board (MDF etc.) uncoated, veneered, plastic and paper coated, fibre reinforced plastics (GFRP, CFRP etc.). Technical information: Increase of the processing quality through zero clearance hydro adaptor. Tool with alternate shear angle for tear-free jointing edge and straight cutting surface. Low noise design with noise reduction up to 5 dB(A) and highly efficient chip collection (>95%). Tool with knife arrangement S produces hollow cut for tightly closing edgebanding. Diamaster PRO mounted on hydro sleeve HF 230 2, HF 230 2 DP
