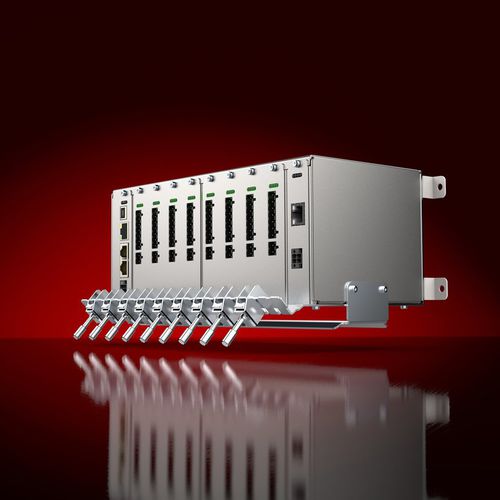

Connection module GEL 65Mx

Intelligent connection box in modular design Two housing variants with 4/9 slots available Module combination for control of up to 17 axes Conveniently configurable via SeGMo-Support Tool Technical data - GEL 65Mx Supply voltage - 24 ... 30 V DC, central supply for logic up to 4A, local supply for power per channel up to 5A Temperature range - 0 °C to 60 °C Protection class - IP 20 Dimensions W x H x L in mm - 194 x 197 x 163.6 (280.6) mm Material - galvanized Interface - Sercos III; POWERLINK; PROFINET IO / RT; EtherCAT; EtherNet/IP Mounting - optional top-hat rail mounting or screwable via mounting bracket Optional - Web Server
