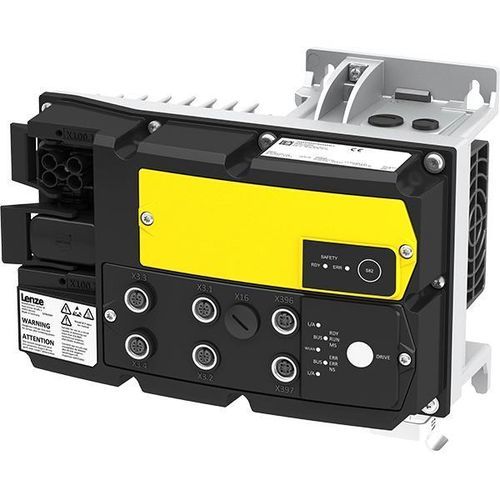

Three-phase frequency inverter i650 motec

wall-mountshaft-mountedNEMA 4X

Product overview
The i650 motec decentralized VFD for wall and motor mounting offers high performance and reliable operation with a NEMA 4X enclosure for indoor protection in fast-moving automation environments. The drive can be extended for universal use with an extension box and disconnect switch and is available with or without Type E combination motor controller and operating elements.

Key benefits

• Reduce work-hours for commissioning, and wiring
  Connectorized electrical connections reduce wiring errors and drop-in mounting holes enable rapid installation.
• Minimize energy loss and lower costs
  Integrated regenerative braking feeds energy back to the mains, eliminating external brake resistors and lowering parts and operating costs.
• Fewer components means fewer failure points
  Built-in IO-Link removes the need for external IO-Link blocks; regenerative capability removes the need for external brake resistors, reducing installation complexity and failure points.

Features and benefits

• Mounting flexibility
  Wall or motor mounting supports multiple mechanical designs and simplifies integration.
• Improved control
  Open- and closed-loop motor control delivers precise speed and torque regulation in real time.
• Harsh environments
  NEMA 4X enclosure rating allows operation in demanding indoor conditions.
• CIP Safety™
  TÜV-certified; integrates with CIP Safety and EtherNet/IP™ protocols. Supports DLR ring, tree and star network topologies.
• Connectivity
  Four IO-Link ports with limited IO-Link master functionality for straightforward data exchange with IO-Link sensors and actuators.

Standards / Safety compliance
Complies with EN ISO 13849-1 (Category 4, PL e). Complies with EN 61800-5-2 and EN 61508 (SIL 3).

Technical data and features (table)
Technical data: 0.37 ... 45 kW
Connections: 3 AC 230 V; 3 AC 400 V; 3 AC 480 V
Application I/O: 4 x IO-Link port or 8 x digital input or 4 x digital input / 4 x digital output
Holding brake control: supported
Motor temperature monitoring: supported
USB interface: USB-C
Communication: EtherCAT; EtherNet/IP; IO-Link; Modbus TCP; PROFINET
Safety: Safety bus CIP Safety; operation with safety PLC

Technical specifications

• Power range: 0.37 ... 45 kW
• Supply connections: 3 AC 230 V, 3 AC 400 V, 3 AC 480 V
• Application I/O options: 4 x IO-Link port OR 8 x digital inputs OR 4 x digital inputs + 4 x digital outputs
• Holding brake control: supported
• Motor temperature monitoring: supported
• USB interface: USB-C
• Communication protocols: EtherCAT, EtherNet/IP, IO-Link, Modbus TCP, PROFINET
• Safety: CIP Safety bus, operation with safety PLC, certified to EN ISO 13849-1 (Cat. 4, PL e) and EN 61800-5-2 / EN 61508 (SIL 3)
• Mounting: Wall or motor mounting
• Enclosure rating: NEMA 4X (indoor protection)
• Regenerative braking: Integrated (feeds energy back to mains)
• IO-Link: Four ports with limited IO-Link master functionality
