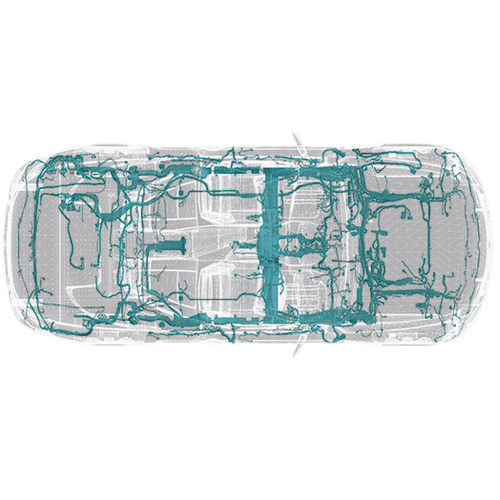

Wiring EDS architecture

Frequently the EDS system architecture needs to reflect the topology and structural design of the vehicle. There is never just one answer. Optimised EDS system architectures enable us, in most cases, to reduce the weight of a vehicle’s wiring system. Less weight means lower fuel consumption and reduced exhaust emissions – good news for our customers and great news for the environment. Our expertise, integrated in-house CAD tool chain and understanding of the market trends mean, when developing a vehicle’s full EDS architecture, we can consider the following: EDS network concept Functional partitioning Feature list ECU hardware Grounding concept Power distribution Packaging Harness partitioning Harness routing Wire dimensioning
