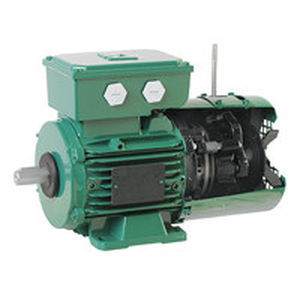

three-phase brake motor / asynchronous / 380 V / 400 V
FFB

{{requestButtons}}

Characteristics

  • AC/DC:

    three-phase

  • Type:

    asynchronous

  • Voltage :

    380 V, 400 V, 690 V, 220 V

  • Other characteristics:

    4-pole, 6-pole, 2-pole, IP55, forced ventilation, IE3, with no-current failsafe brake

  • Torque:

    Max.: 200 Nm (147.5124 ft.lb)

    Min.: 4.5 Nm (3.319 ft.lb)

  • Power:

    Max.: 22 kW (29.912 hp)

    Min.: 0.12 kW (0.163 hp)

Description

Failsafe brake operating when supply off (a braking force is applied when de-energized) on LS non IE, LSES IE2, IE3 asynchronous three phase IMfinity® motors range.

Reliability and robustness.

Performance and safety.

Flexible conception.

Supervision on brake duties : wear indicator microswitch, tightening and loosening indicator microswitch.

Auto-return brake release systems : simple, lock off or remote lever.

Variable speed construction : thermal protection , encoder and/or forced ventilation. ​
