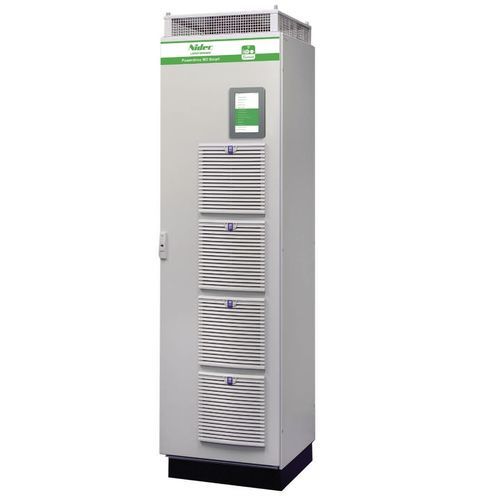

Smart AC drive Powerdrive MD3 series
three-phasefloor-standingcabinet

smart AC drive
smart AC drive
smart AC drive
smart AC drive
smart AC drive
Add to favorites
Compare this product


Characteristics

Type
three-phase
Mounting
floor-standing, cabinet, chassis
Applications
for induction motors, for marine application, for energy conversion and storage, for asynchronous motors, for permanent magnet motors, for synchronous motor, for oil industry applications
Protection class
IP54, IP21
Other characteristics
compact, open-loop, modular, closed-loop, high-power, air-cooled, vector-controlled, variable-speed, water-cooled, smart
Power

Max.: 3,800 kW

Min.: 75 kW

Intensity

Max.: 6,700 A

Min.: 142 A

Output frequency

Max.: 65 Hz

Min.: 45 Hz

Description

The range of high power modular drives from Nidec Leroy-Somer evolves with POWERDRIVE MD Smart - an even more compact and user-friendly system.; The components of the POWERDRIVE MD Smart allow by assembly to offer all the following types of architectures: - Passive rectifier 6,12,18 or 24 Pulse - Active rectifier (Active Front-End :AFE) - DC Bus systems, DC/DC converters The choice of architecture makes it possible to reduce the level of harmonics in order to limit pollution of the power supply networks and to comply with the IEEE519 standard. POWERDRIVE MD Smart offers high performance motor control (AC or PM), making it the ideal choice for any industrial or commercial variable speed application up to 3800 kW. Equipped with a new 7 "HMI (Android) and a secure wireless connection, POWERDRIVE MD Smart offers, with the Systemiz application, a multitude of services to enrich the user experience.
