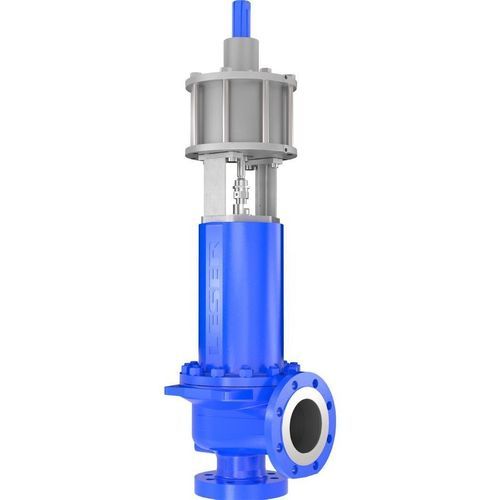

Pneumatic loading system 714

Product description
Electric-pneumatic supplementary loading system designed for safe operation up to 97% of the maximum permissible operating pressure (PB). Type 714 enables precise control of safety valve loading to minimize leakage, noise and wear while maintaining full tightness up to the set pressure. Suitable for industrial process installations requiring accurate overpressure protection and improved operational availability.

Key benefits

• Allows operation closer to set pressure (up to 97% PB), increasing process productivity
• Reduces media loss through shorter opening and closing times of safety valves
• Lowers noise emissions due to faster valve actuation
• Ensures complete tightness up to set pressure, maintaining seal during pressure peaks below set point
• Decreases wear on the safety valve by preventing simmering prior to actuation

Applications & Industries

• Chemical industry
• Energy and power plants
• Pulp and paper industry
• Urea and fertilizer production

The optimal solution for

• Operation up to 97% of set pressure
• Maintaining complete tightness to set pressure
• Systems with back pressure greater than 50%

Technical features Type 714 (table)
Set pressure (according to CE): 0,1 - 200 barg | 1,5 - 2.900 psig
Set pressure (according to ASME): 0,1 - 250 barg | 1,5 - 2.900 psig
Temperature (according to CE): -40 - 550 °C | -40 - 1,022 °F
Temperature (according to ASME): -40 - 550 °C | -40 - 1,000 °F
Capacity: Orifice D - T
Connections DIN EN 1092: DN 25 - DN 400
Connections ASME B16.5: NPS 1 to NPS 16
Flange class Inlet DIN EN 1092: PN 10 - PN 400
Flange class Inlet ASME B16.5: Class 150 - Class 2500
Body material: 0.6025, 0.7043, 1.0619, 1.4408, 1.7357 | Gr. 60-40-18, SA 216 WCB, SA 351 CF8M, SA 217 WC6, SA 352 LCB, SA 351 CF3M, SA 995 Gr 4A CD3MN (Duplex), SA 494 M35-1 (Monel), SA 494 CX2MW (Hastelloy)
Narrowest flow diameter d₀: 14 - 295 mm | 0.55 - 11.61 in
Narrowest flow area A₀: 154 - 68347 mm² | 0.239 - 105.938 in²
Bellows material: Stainless steel, INCONEL® 625LCF
Seat gasket: Soft sealing, Metallic, Sealing plate

Technical specifications

• Set pressure (CE): 0,1 - 200 barg | 1,5 - 2.900 psig
• Set pressure (ASME): 0,1 - 250 barg | 1,5 - 2.900 psig
• Temperature (CE): -40 - 550 °C | -40 - 1,022 °F
• Temperature (ASME): -40 - 550 °C | -40 - 1,000 °F
• Capacity: Orifice D - T
• Connections (DIN EN 1092): DN 25 - DN 400
• Connections (ASME B16.5): NPS 1 to NPS 16
• Flange class Inlet (DIN EN 1092): PN 10 - PN 400
• Flange class Inlet (ASME B16.5): Class 150 - Class 2500
• Body material: 0.6025, 0.7043, 1.0619, 1.4408, 1.7357; Gr. 60-40-18, SA 216 WCB, SA 351 CF8M, SA 217 WC6, SA 352 LCB, SA 351 CF3M, SA 995 Gr 4A CD3MN (Duplex), SA 494 M35-1 (Monel), SA 494 CX2MW (Hastelloy)
• Narrowest flow diameter d₀: 14 - 295 mm | 0.55 - 11.61 in
• Narrowest flow area A₀: 154 - 68347 mm² | 0.239 - 105.938 in²
• Bellows material: Stainless steel, INCONEL® 625LCF
• Seat gasket: Soft sealing, Metallic, Sealing plate
