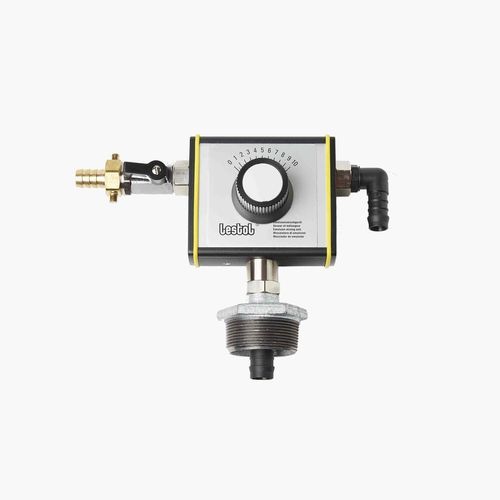

Low-viscosity liquid batch blender S 1520

for high-viscosity productsoilfor chemicals

Stable emulsions with continuous dosage, due to the injector-Venturi principle. Saving of coolant lubricants and multiple extension of the service lives. The LESTOL emulsion mixing unit serie S has the following features: - solid construction - simple installation and easy to operate - simple and low-cost operation - continuous adjustment of additive mix - savings on cutting oils or emulsions - Repeated extension of the service lives - low maintenance Standard Content - Mixing unit - Water connection and ball valve - Screwed flange to fix on the drum - Inlet tubing with check valve and sieve - Outlet hose with pipe - Option: Wall mounting kit Mounting and Function The unit can be screwed either by means of 2” sleeve directly on the barrel with the concentrate, or be fastened with an optional mounting kit to the wall. The cooling lubricants liquid (on the basis of mineral oil, half or full-synthetic products) leaves the mixing unit perfectly homogeneous. The unit works after the injector venturi principle, whereby the water flow pressure produces a vacuum. Thus the adjusted quantity of the watermixable coolant is sucked in and mixed in the wateroperated vacuum pump optimally to a sturdy and homogeneous emulsion. Description: - Standard Mixing output: - approx. 1000 l/h Mixing ratio: - approx. 10 – 40% Size (L x W x H): - 120 x 50 x 110 mm Weight: - approx. 3 kg
