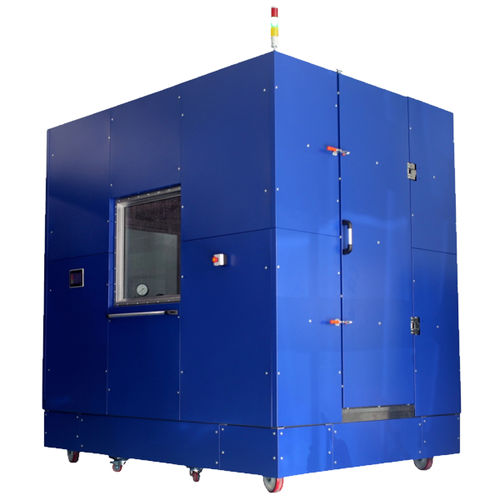

Rain test chamber RTC-M1

environmentalwater spraydevice

Overview of Rain Test Chambers Our rain test chambers are designed for testing of watertightness of several mechanical and electrical devices, cables, connectors etc. These chambers meet the requirements of the MIL-STD-810 G/H Standard (Method 506.6 Procedure II, III) which defines required tests, for military use. Within the scope of test procedures described in the standard, the chambers reproduce exaggerated rain (procedure II) and drip type (procedure III) water falls (as rain droplets) on the test item. The units are also suitable for Ingress Protection Tests (IPX3, IPX4, IPX5 and IPX6) according to the IEC 60529 standard. Applications Device/Cable Assembly Watertightness Testing Military Spec (810 G/H) Rain Testing Ingress Protection Tests (IPX3, IPX4, IPX5 and IPX6) in IEC 60529. Key Features MIL-STD-810 G/H Rain Tests (Exaggerated Rain And Drip) Ingress Protection Tests (IPX3, IPX4, IPX5 and IPX6) in IEC 60529. Stainless Steel 304 for All Water Contact Surfaces and Mainframe Construction High Quality Brass Full-Cone Nozzles Double Pump System (for Equal Wear) TouchScreen HMI Control Unit Three Large Windows Cost-Effective Solution
