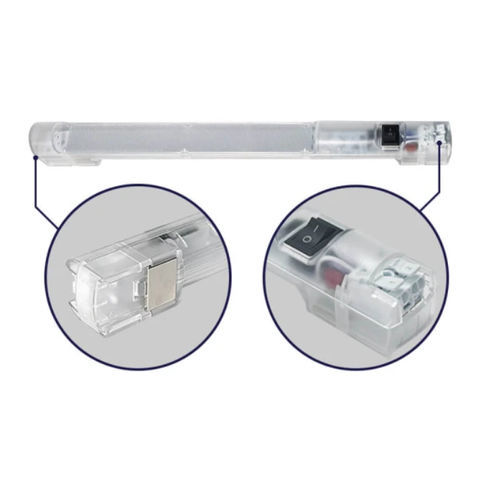

LED tube GTA-ECL1 series

The lamps are installed to illuminate the inside of the electrical cabinet during maintenance. - Maintenance lighting: When associated with a limit switch, the LED light automatically turns on when the cabinet door is opened. - Magnetic mounting: The GTA-ECL1M model with magnetic mounting can be moved to illuminate a specific area of the electrical cabinet. - General features: AC or DC voltage depending on the model. 6W consumption, efficiency >72%. 690 lumens Color temperature 6500K. Minimum LED lifespan: 60,000 hours. - Integration: Connection via push terminals IN and OUT. Surface or magnetic mounting (depending on the model). - Variants and order codes: GTA-ECL1M-DC: Magnetic, 12-72 VDC, In stock GTA-ECL1M-AC: Magnetic, 85-265 VAC, In stock GTA-ECL1S-DC: Surface, 12-72 VDC, In stock GTA-ECL1S-AC: Surface, 85-265 VAC, In stock - Technical specifications: Power: 6W Luminous flux: 690 lm Color temperature: 6500K Minimum LED lifespan: 60,000 hours Mounting: Magnetic or surface (depending on model) Voltage: 12-72 VDC or 85-265 VAC (depending on model) Connection: Push terminals IN and OUT Efficiency: >72%
