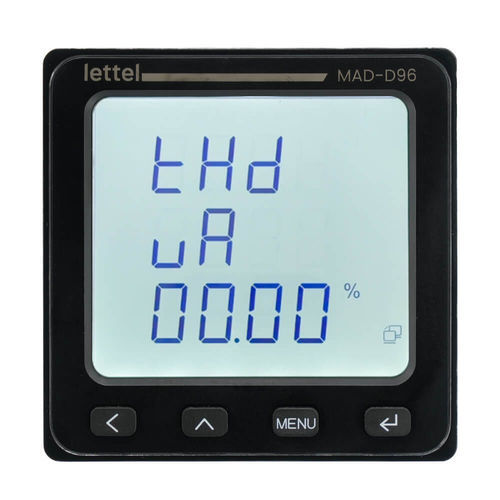

Information display panel MAD-D series

Flush-mount displays to be associated with MAD measurement units from 63 to 250A and from 400 to 630A: - **Housing and Installation:** The displays are available in 2 sizes for flush mounting on electrical cabinet doors: - **MAD-D96:** Front panel 96x96mm to be embedded in cutouts Ø26, 67×67, 72×72, or 91x91mm. - **MAD-D72:** Front panel 72x72mm to be embedded in Ø26mm cutout. The depth behind the panel is only 20mm, plus the RJ12 cord. - **Connection:** A single RJ12 cord connects the display to the associated MAD measurement unit. No other wiring is required. - **Display and Interface:** Large format LCD display, on 4 lines, with adjustable backlighting. 4 buttons allow navigation through the menu. - **Displayed Measurements:** The data displayed on the scrolling menu includes: - **Instantaneous Values:** Voltage per phase and neutral | Current per phase and neutral | Active, reactive, apparent powers per phase and total | Power factor per phase and total | Frequency. - **Energies:** Active and reactive, imported and exported | Apparent | Reactive 4 quadrants | 4 tariff counting - **Analysis:** Average values | Demands | Extreme values - **Network Quality:** U and I imbalances | Distortion rates and harmonic contents U and I up to the 31st order. - **Variants and Order Codes:** - MAD-D72: 72×72 mm, in stock - MAD-D96: 96×96 mm, in stock - **Technical Specifications:** - Large format LCD display, 4 lines, adjustable backlighting - Navigation with 4 buttons - Depth behind panel: 20mm + RJ12 cord - Connection via single RJ12 cord - Available formats: 72x72mm (MAD-D72), 96x96mm (MAD-D96) - Flush-mountable on electrical cabinet doors - Display of instantaneous values, energies, analyses, network quality
